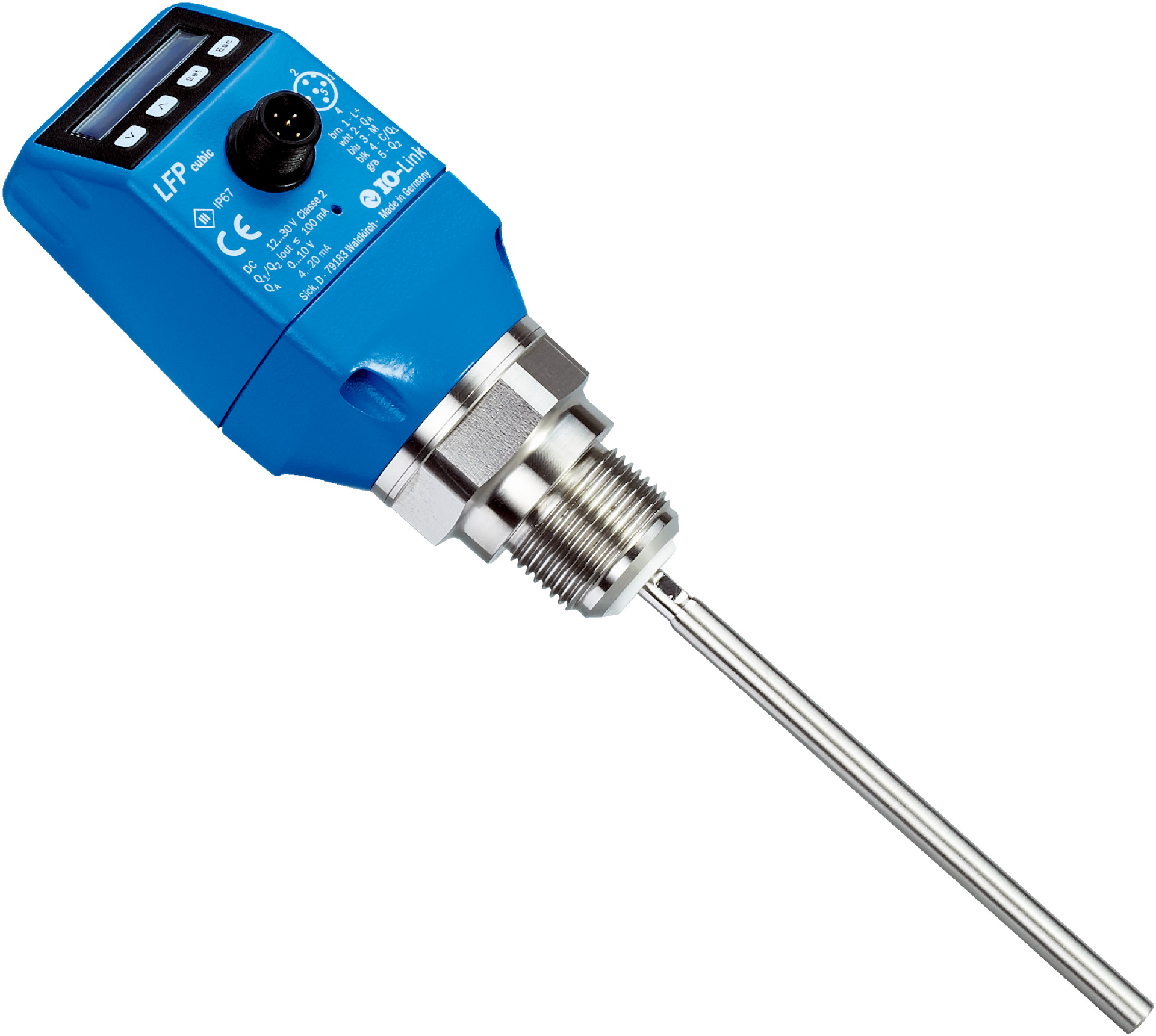

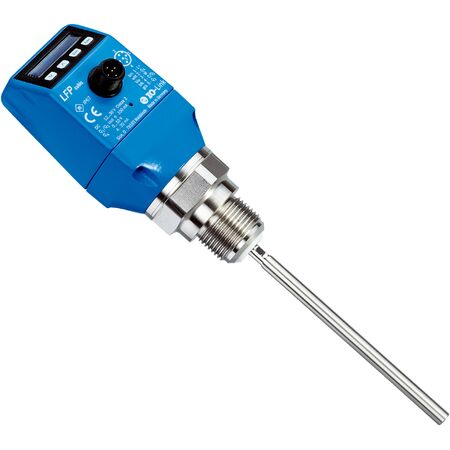

Rod Probe Level Sensor | 1000 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial applications. With a 1000 mm length and high accuracy of ±5 mm, it’s perfect for continuous and switch level detection in tanks and vessels. Featuring an IP67 rated enclosure and stainless steel wetted parts, this sensor ensures durability and reliability in harsh environments, making it ideal for chemical, water treatment, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rod Probe Level Sensor | 1000 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
Brand: SICK
SKU: 1057100
Alternatively Known As: Rod Probe Level Sensor, Fluid Level Sensor, Continuous Level Switch, IO-Link Level Sensor
Technical Specifications
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe design with 1000 mm length for versatile fluid level measurement
- Standard amplifier for switch and continuous measurement
- High accuracy with ±5 mm sensor element precision and ≤2 mm reproducibility
- Fast response time of 400 ms
- IO-Link communication interface for easy integration and diagnostics
- Wide process pressure range from -1 bar to 10 bar
- Process temperature range from -20 °C to +100 °C
- IP67 rated enclosure for robust protection against dust and water
- Stainless steel wetted parts (1.4404 / 316L), PTFE and FKM seals for chemical resistance
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Process monitoring in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and chemical-resistant materials extend product life reducing waste
- Low power consumption (≤100 mA at 24 V DC) supports energy efficiency
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP1000-B4NMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and process control applications.
