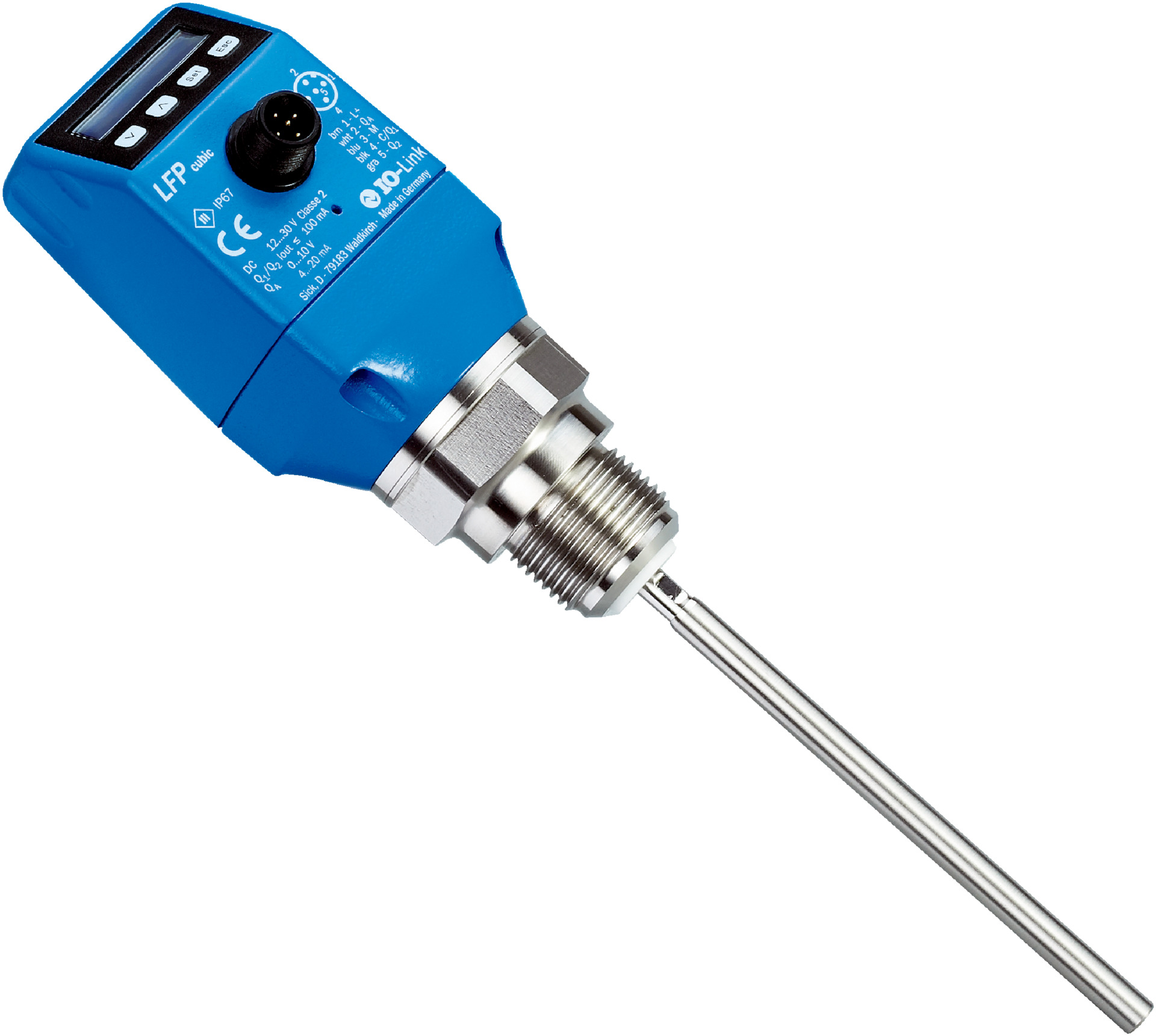

Rod Probe Level Sensor | 1500 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 1500 mm length and high accuracy of ±5 mm. With both continuous and switch measurement types, this sensor is ideal for monitoring liquids in tanks and vessels across various industries, including chemical and food processing. Its robust IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 1500mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe design with 1500 mm length
- Measurement types: switch and continuous
- Standard amplifier design with display
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IO-Link communication interface for smart integration
- Wide process pressure range from -1 bar to 10 bar
- Process temperature range from -20 °C to +100 °C
- IP67 rated enclosure for robust protection
- Stainless steel wetted parts (1.4404 / 316L), PTFE, and FKM seals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for liquids with varying dielectric constants
- Process monitoring in chemical, water treatment, and food industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and high-quality materials ensure long service life reducing waste
- Low power consumption (≤ 100 mA at 24 V DC) supports energy efficiency
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

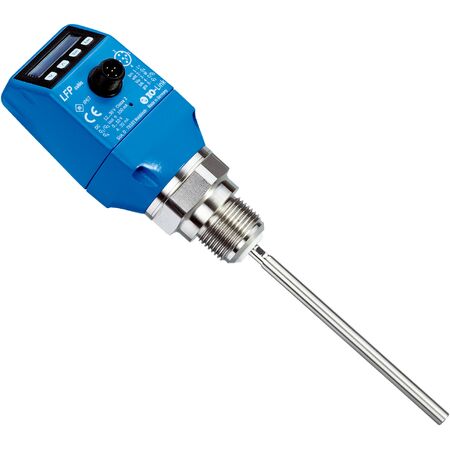

The SICK LFP1500-B4NMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and process control applications.
