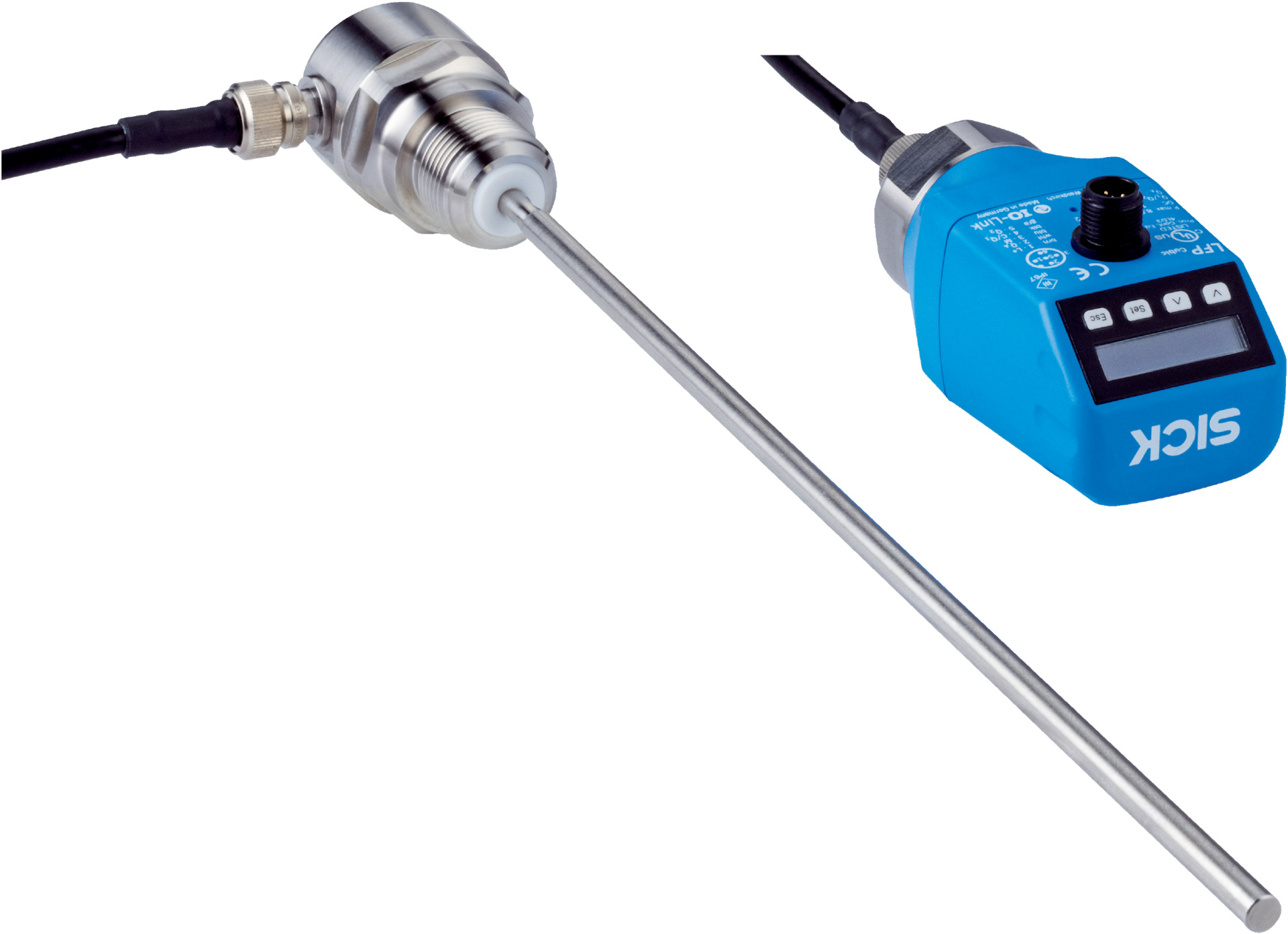

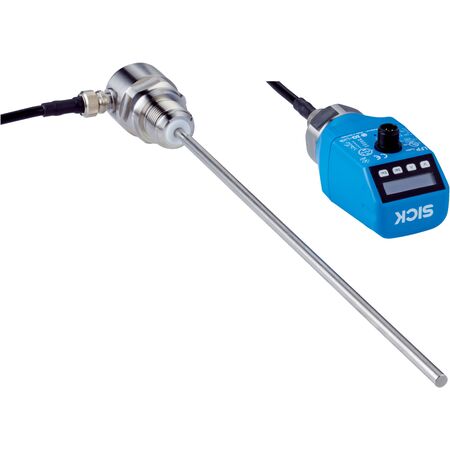

Rod Probe Level Sensor | 2000 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial applications, featuring a 2000 mm rod probe length and high accuracy of ±5 mm. With a fast response time of 400 ms and multiple output signals, it’s perfect for continuous and switch level detection in tanks and vessels, ensuring reliable monitoring in chemical, water treatment, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Switch and continuous level measurement
- Probe type: Rod probe, 2000 mm length
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectric constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC
- Output signals: 1 x PNP, 3 x PNP/NPN, 4-20 mA, 0-10 V
- Connection: M12 round connector, 8-pin
- Enclosure rating: IP67
- Material wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G ¾ A
- Operating ambient temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe length of 2000 mm for deep level measurement
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element precision
- Fast response time of 400 ms
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- IP67 rated enclosure for protection against dust and water
- Communication via IO-Link interface
- Wide process pressure range from -1 bar to 10 bar
- Operating temperature range from -20 °C to +100 °C
- Wetted parts made of stainless steel 316L and PTFE for chemical resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor systems and electrical safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for liquids with varying dielectric constants
- Process monitoring in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PTFE materials ensure long service life reducing waste
- Low power consumption design minimizes energy use
- Accurate level measurement helps prevent overflows and spills, protecting the environment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2000-A5CMC Rod Probe Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
