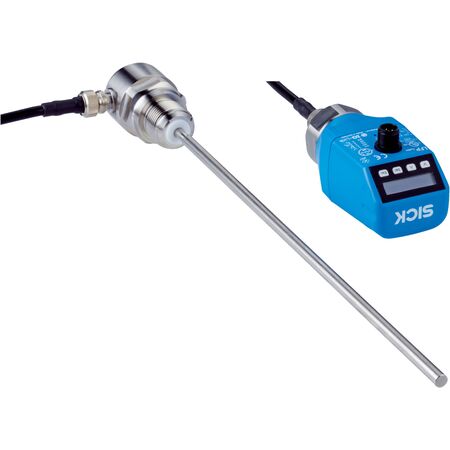

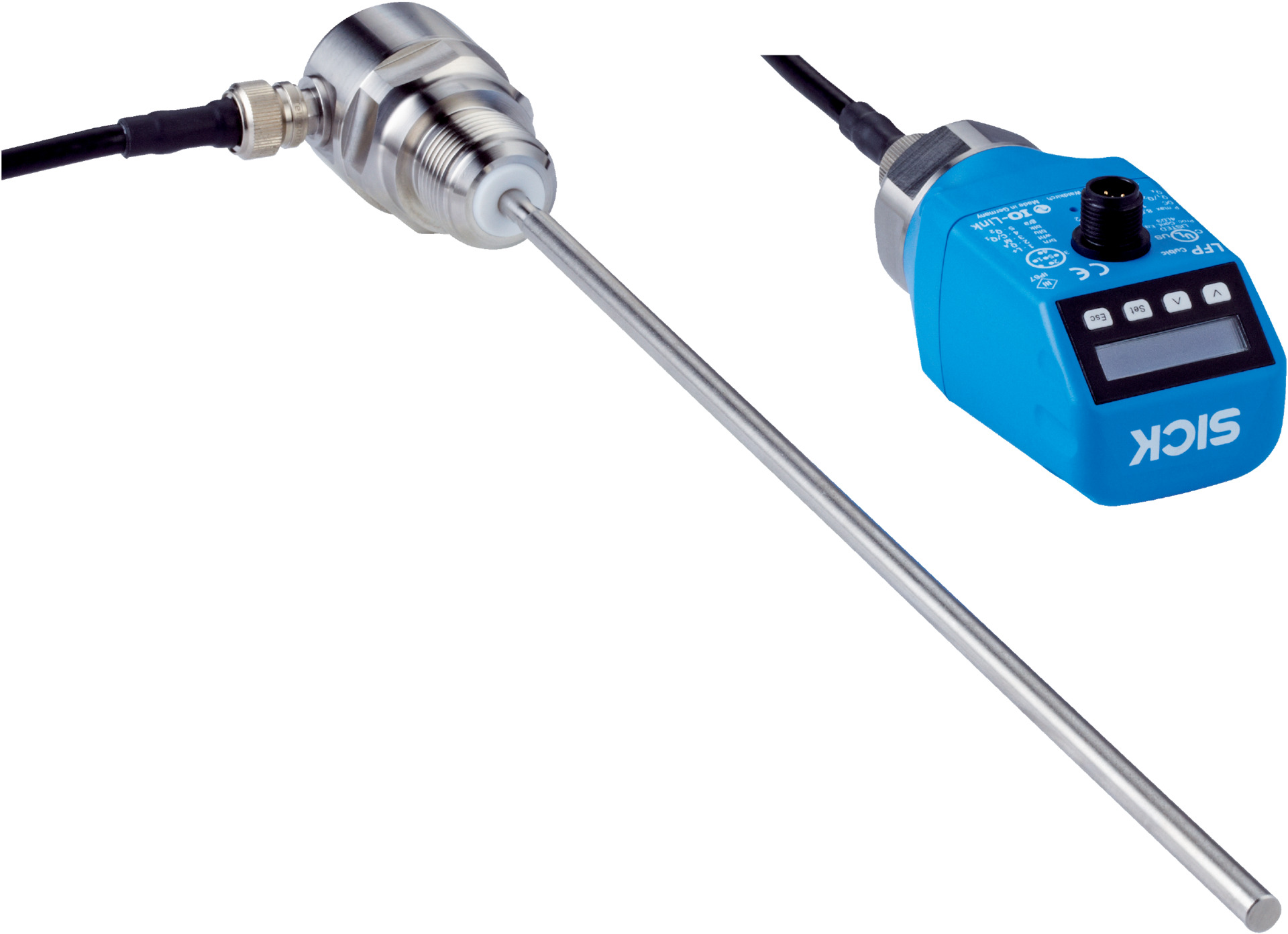

Rod Probe Level Sensor | 2000 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 2000 mm probe length and high accuracy of ±5 mm. With a fast response time of 400 ms and an IP67 rated enclosure, it’s perfect for continuous and switch level detection in tanks and vessels, ensuring reliable performance under various pressure and temperature conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Switch and continuous level detection
- Probe length: 2000 mm
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectric constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC
- Output signals: 1 x PNP, 1 x PNP/NPN, 4-20 mA, 0-10 V
- Enclosure rating: IP67
- Connection: Round connector M12 x 1, 5-pin
- Material wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: ¾" NPT
- Ambient operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 2000 mm length for extended measurement range
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element precision
- Fast response time of 400 ms
- IO-Link communication interface for easy integration
- IP67 rated enclosure for protection against dust and water
- Wide process pressure range from -1 bar to 10 bar
- Operating temperature range from -20 °C to +100 °C
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for use with various fluids under pressure and temperature conditions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials extend product life and reduce replacement frequency
- Low power consumption design minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2000-B4BMB Rod Probe Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
