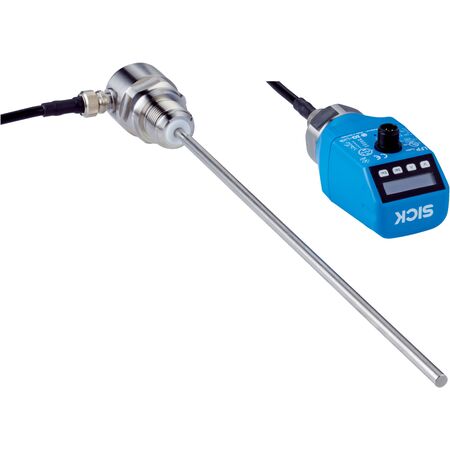

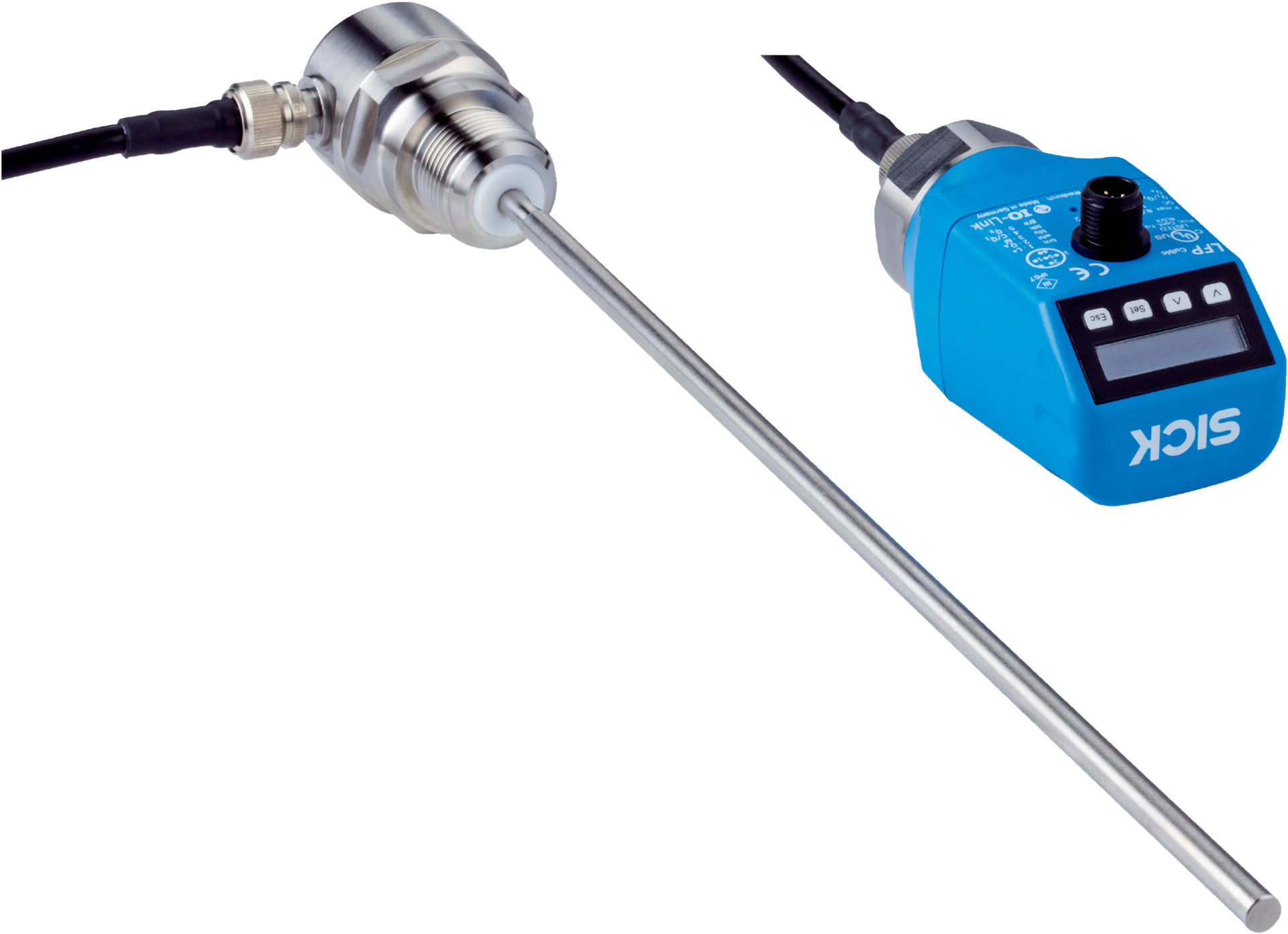

Rod Probe Level Sensor | 300 mm Length | Remote Amplifier Design | High Accuracy ±5 mm | by SICK

BRAND: SICK
SKU: 1071094
$2,126.60 List price: $2,673.00
+ −
30 Days Return Delivery Options
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 300 mm rod length and a remote amplifier for enhanced performance. With measurement modes for both continuous and switch detection, it ensures high accuracy and fast response times, making it ideal for tanks and vessels in various applications.
Technical Specifications
  • Dimensions (H x L x W): 300mm x 50mm x 30mm
  • Weight: 0.5 kg
Key Features
  • Rod probe type with 300 mm length
  • Remote amplifier design
  • Measurement modes: switch and continuous
  • High accuracy with ±5 mm sensor element accuracy
  • Reproducibility ≤ 2 mm and resolution < 2 mm
  • Fast response time of 400 ms
  • IO-Link communication interface
  • Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
  • Protection class III with IP67 enclosure rating
  • Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
  • Process connection G ¾ A
  • Operating ambient temperature from -20 °C to +60 °C
  • Long mean time to failure (MTTF) of 194.3 years
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication and process integration.
Applications
  • Fluid level measurement in industrial processes
  • Continuous and switch level detection in tanks and vessels
  • Suitable for liquids with process pressure from -1 bar to 10 bar
  • Use in environments with process temperatures from -20 °C to +100 °C
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel and PTFE materials ensure long product life reducing waste
  • Low power consumption of ≤ 100 mA at 24 V DC
  • IP67 rating protects against environmental ingress, reducing maintenance and replacement
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK LFP0300-A5DMC Rod Probe Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement applications.
