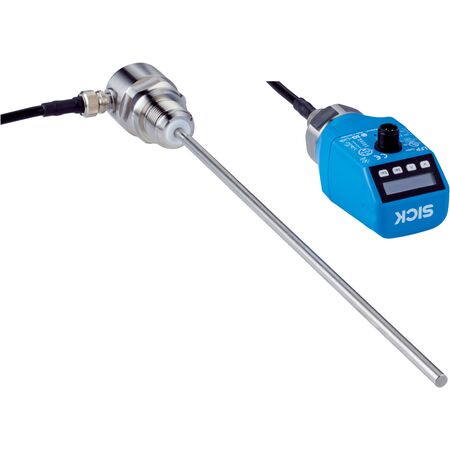

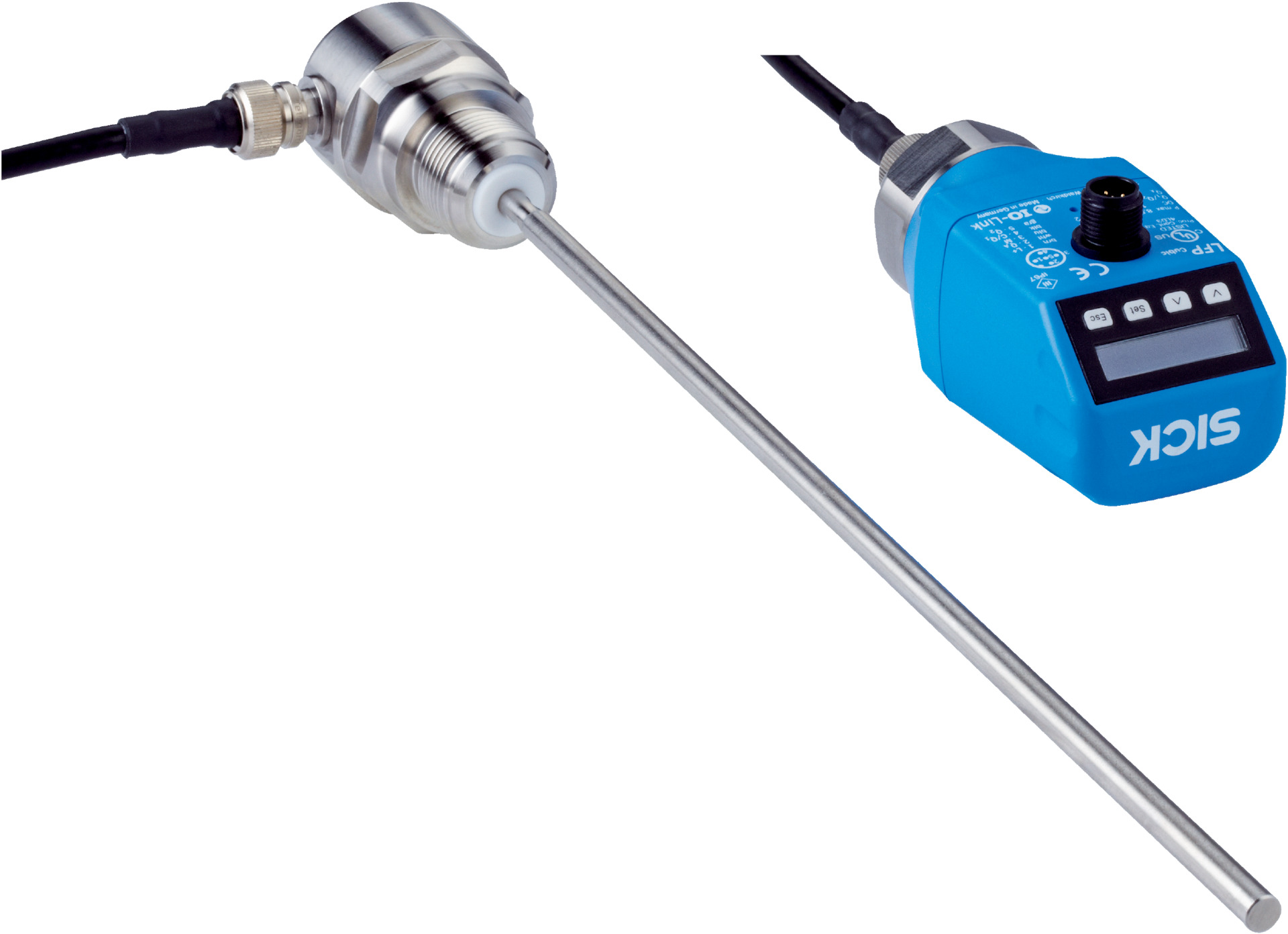

Rod Probe Level Sensor | 300 mm Length | Remote Amplifier Design | IP67 Rated | by SICK

BRAND: SICK
SKU: 1071104
$2,046.10 List price: $2,571.70
+ −
30 Days Return Delivery Options
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial applications, featuring a 300 mm probe length and a remote amplifier design. With high accuracy and multiple measurement modes, it’s perfect for continuous and switch level detection in various liquids, ensuring reliable performance in challenging environments.
Technical Specifications
  • Dimensions (H x L x W): 300mm x 50mm x 30mm
  • Weight: 0.5 kg
Key Features
  • Rod probe type with 300 mm probe length
  • Remote amplifier design
  • Measurement modes: switch and continuous
  • High accuracy with ±5 mm sensor element accuracy
  • Reproducibility ≤ 2 mm and resolution < 2 mm
  • Response time of 400 ms
  • IO-Link communication interface
  • Supply voltage range 12 V DC to 30 V DC
  • Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
  • Protection class III with IP67 enclosure rating
  • Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
  • Process connection ¾" NPT
  • Operating ambient temperature from -20 °C to +60 °C
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper connection and calibration, especially for process connection and electrical wiring.
Applications
  • Fluid level measurement in industrial processes
  • Continuous and switch level detection in liquids
  • Use in environments with process pressure from -1 bar to 10 bar
  • Suitable for process temperatures from -20 °C to +100 °C
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel and PTFE materials ensure long service life reducing waste
  • Low power consumption of ≤ 100 mA at 24 V DC
  • High MTTF of 194.3 years reduces replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK LFP0300-B4DMB Rod Probe Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement applications.
