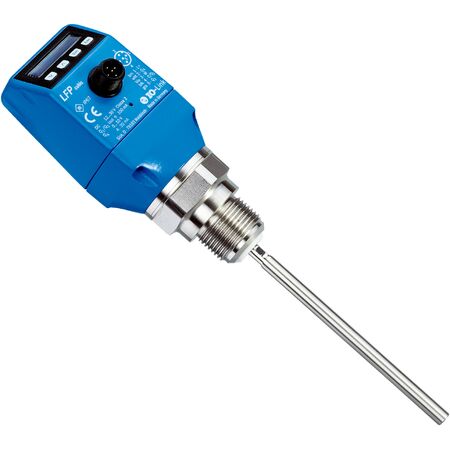

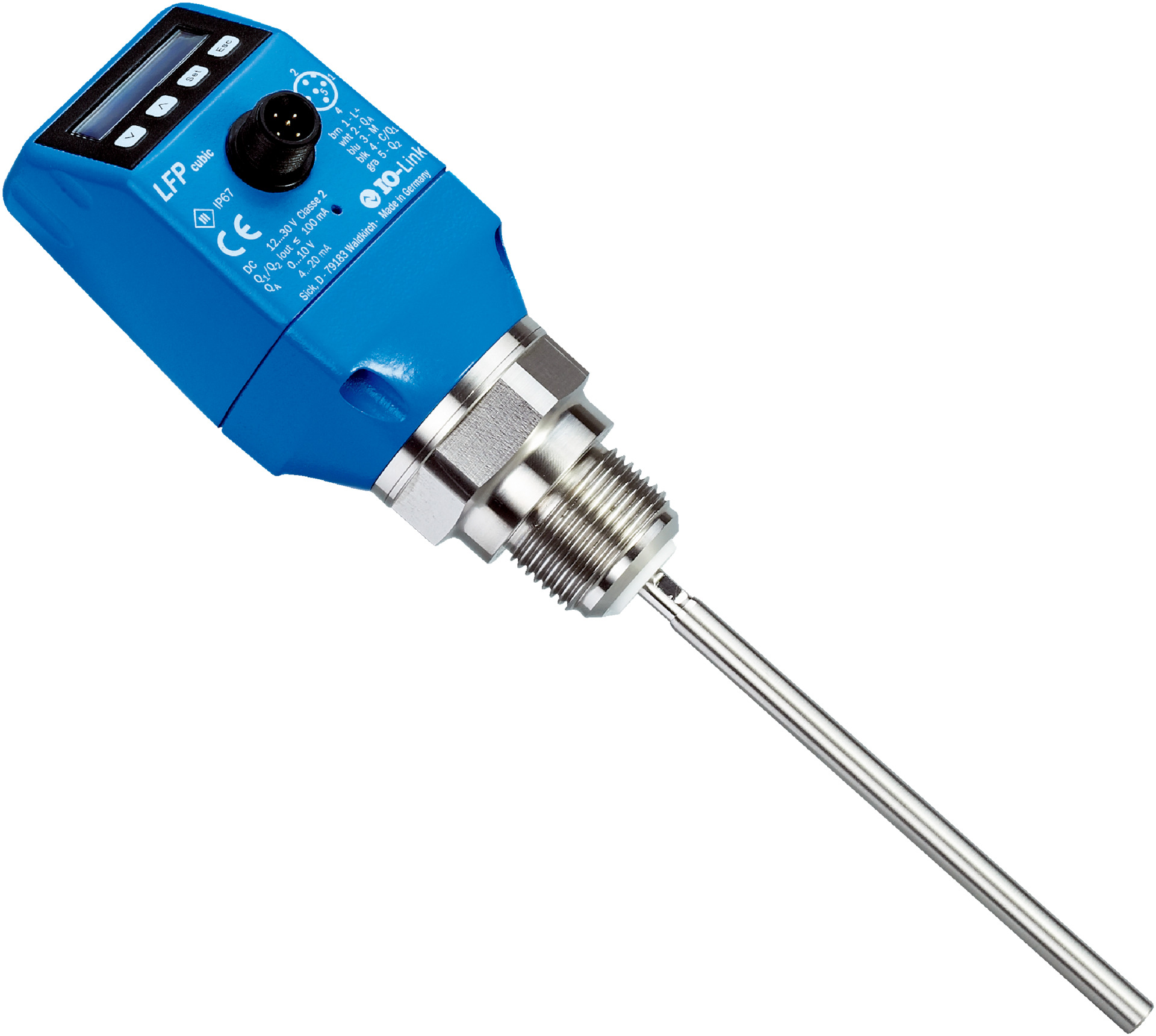

Rod Probe Level Sensor | 350 mm Length | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 350 mm length and high accuracy of ±5 mm. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for continuous and switch level detection in various liquid environments. Its IO-Link communication interface allows for smart connectivity, making it suitable for a wide range of applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 350mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe design with 350 mm length
- Standard amplifier for switch and continuous measurement
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IO-Link communication interface for smart connectivity
- IP67 rated enclosure for protection against dust and water
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Stainless steel wetted parts (1.4404 / 316L), PTFE, and FKM materials
- Process connection: ¾" NPT
- Wide supply voltage range from 12 V DC to 30 V DC
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link integration.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in environments with process pressure from -1 bar to 10 bar
- Suitable for temperatures from -20 °C to +100 °C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and high-quality materials ensure long service life reducing waste
- Low power consumption (≤ 100 mA) supports energy efficiency
- IP67 protection minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0350-B5NMC level sensor is available for immediate purchase, ideal for industrial fluid level measurement applications.
