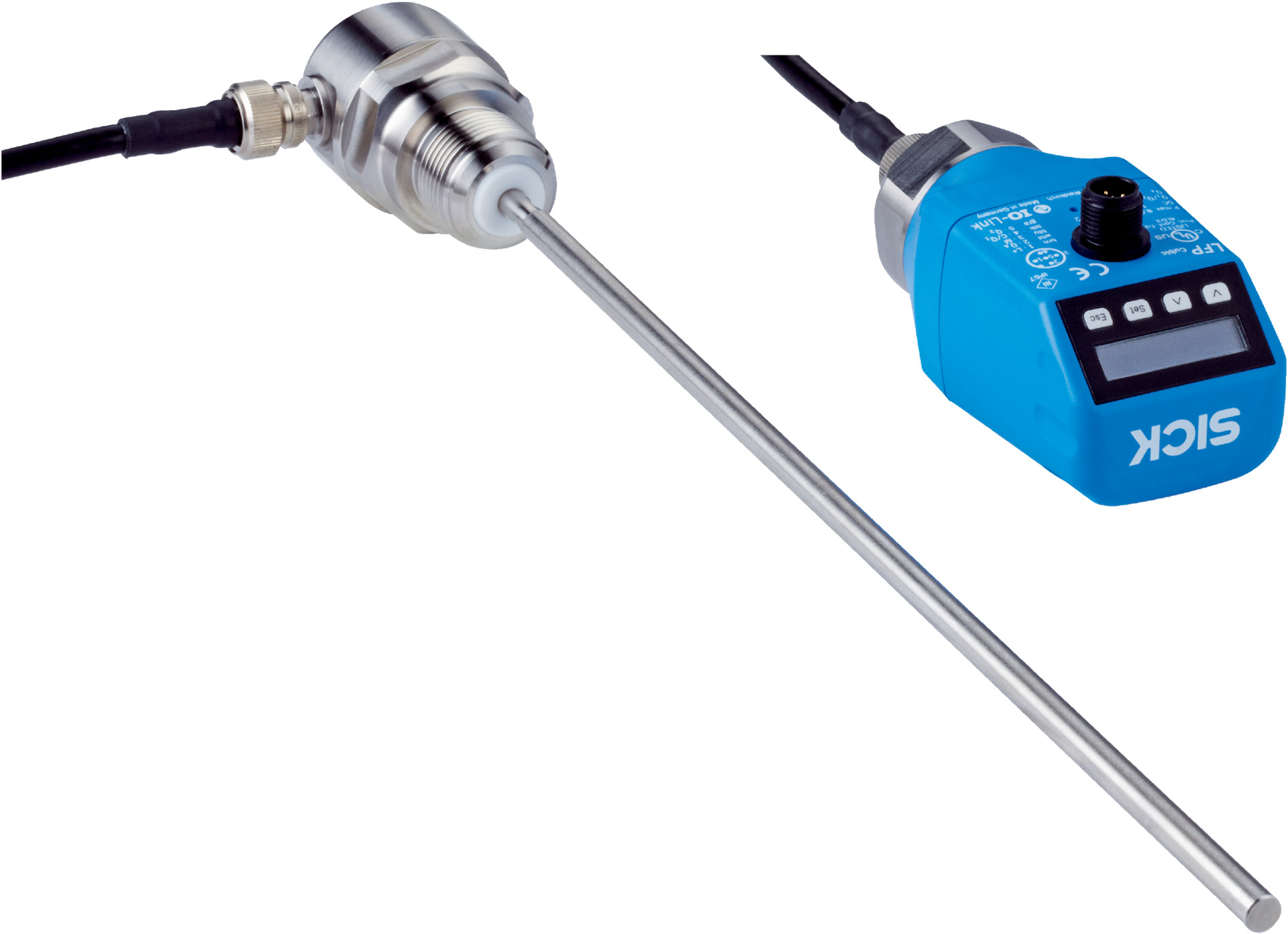

Rod Probe Level Sensor | 700 mm Length | IP67 Rated | ±5 mm Accuracy | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 700 mm rod probe and IP67 rated enclosure for dust and water protection. With a fast response time of 400 ms and multiple output signals, it's perfect for applications in chemical, water treatment, and food industries, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 700mm x 30mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids with process pressure from -1 bar to 10 bar
- Rod probe design with 700 mm length
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IP67 rated enclosure for protection against dust and water
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Communication via IO-Link interface
- Wide supply voltage range from 12 V DC to 30 V DC
- Stainless steel wetted parts for corrosion resistance
- Operating temperature range from -20 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PTFE materials reduce waste and extend product life
- Low power consumption of ≤100 mA at 24 V DC
- Compliance with China-RoHS supports reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

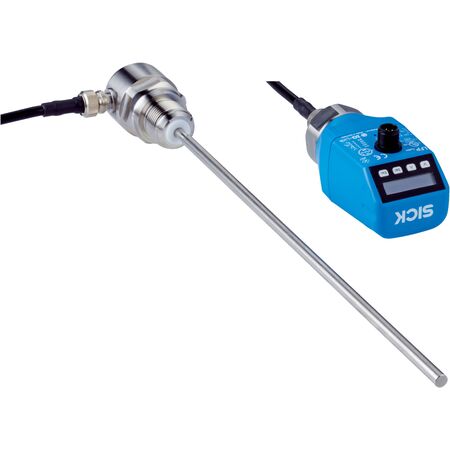

The SICK LFP0700-B4DMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
