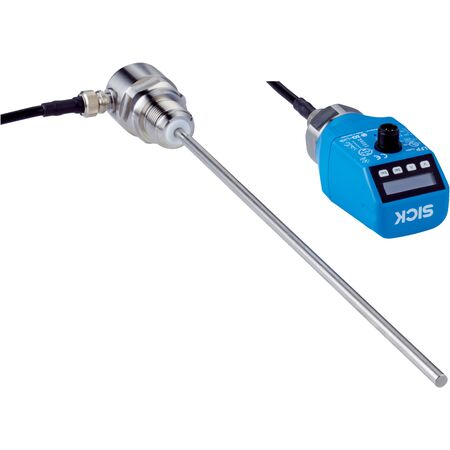

Rod Probe Level Sensor | 700 mm Length | Remote Amplifier Design | High Accuracy ±5 mm | IP67 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a 700 mm length and a remote amplifier for flexible installation. With high accuracy of ±5 mm and an IP67 rated enclosure, it’s perfect for continuous and switch level detection in tanks and vessels, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 700mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 700 mm length
- Remote amplifier design for flexible installation
- Measurement modes: switch and continuous
- High accuracy with ±5 mm sensor element precision
- Fast response time of 400 ms
- IO-Link communication interface for easy integration
- Robust stainless steel wetted parts (1.4404 / 316L), PTFE and FKM seals
- IP67 rated enclosure for protection against dust and water
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for liquids with varying dielectric constants
- Process pressure environments from -1 bar to 10 bar
- Temperature ranges from -20°C to +100°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long MTTF of 194.3 years reduce waste and replacement frequency
- Energy-efficient operation with low power consumption (≤100 mA)
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0700-A4CMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
