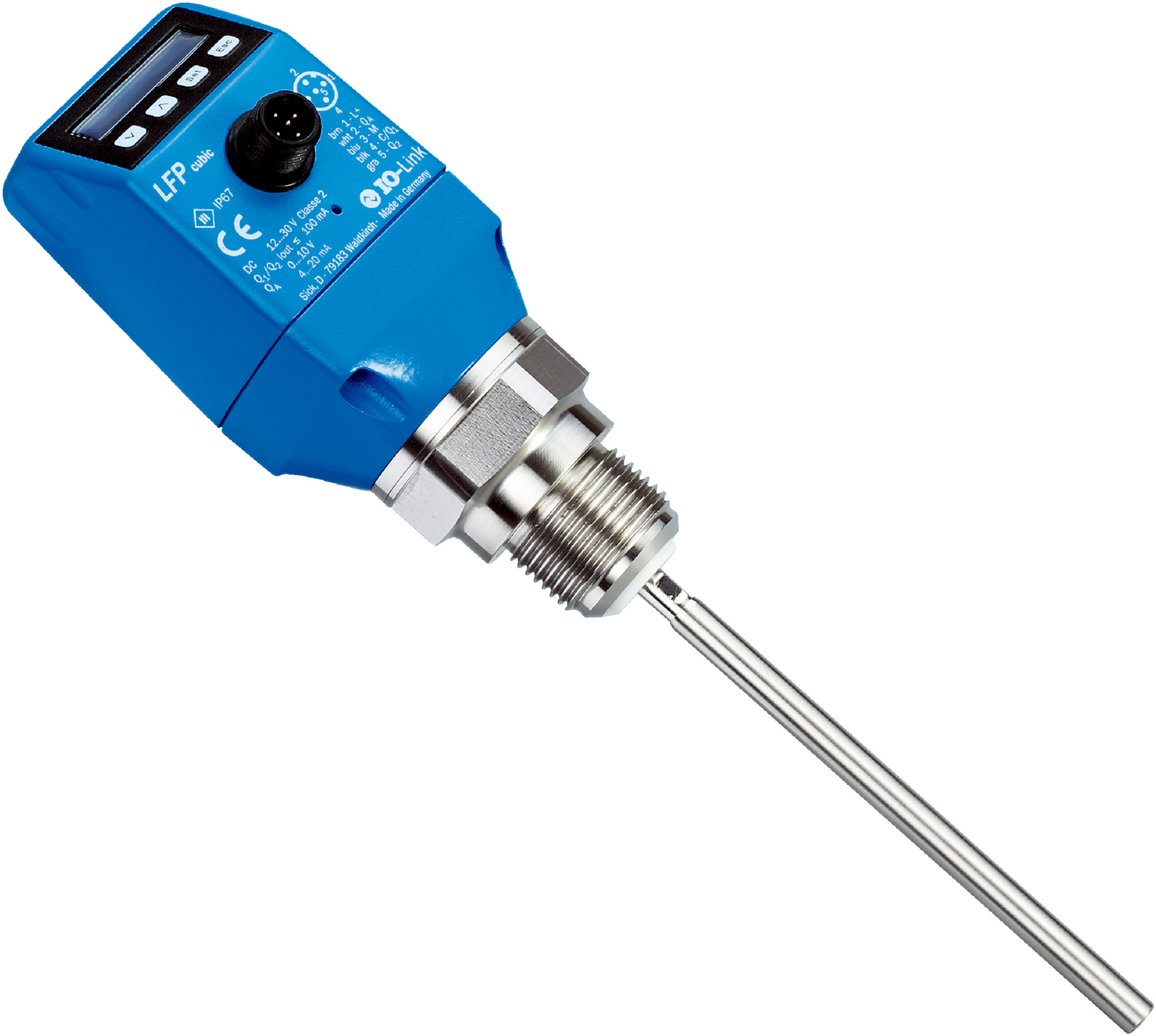

Rod Probe Level Sensor | 870 mm Length | IO-Link Communication | High Accuracy | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial applications. With an 870 mm length and IO-Link communication, it offers both continuous and switch level detection. Built for reliability, it features a robust IP67 rated enclosure and high accuracy of ±5 mm, making it ideal for use in chemical, water treatment, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 870mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe design with 870 mm length
- Measurement types: switch and continuous
- Standard amplifier design
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution < 2 mm
- Fast response time of 400 ms
- IO-Link communication interface for smart connectivity
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- IP67 rated enclosure for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Process connection G ¾ A suitable for various installations
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration, especially for IO-Link integration.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and plastic materials extend product life reducing waste
- Low power consumption (≤ 100 mA) supports energy efficiency
- High reliability with MTTF of 194.3 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

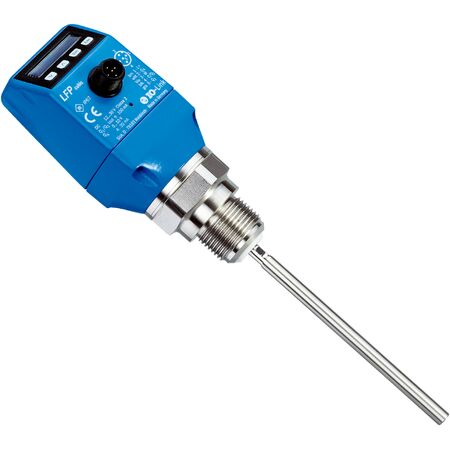

The SICK LFP0870-A4NMB level sensor is available for immediate purchase, ideal for industrial fluid level measurement applications.
