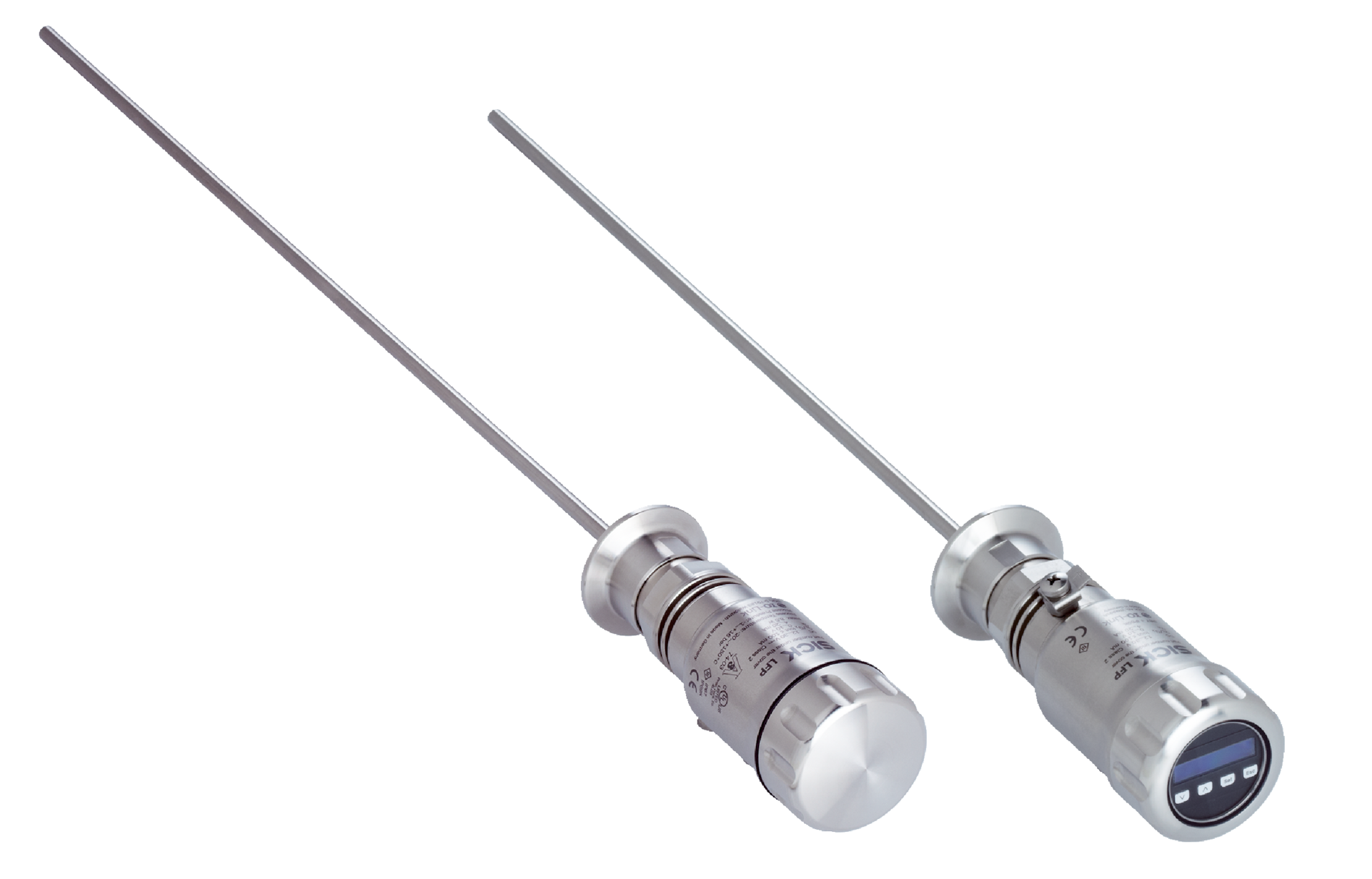

Rod Probe Level Sensor | Hygienic Design | 2000 mm Length | IO-Link Interface | IP67 & IP69 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in industrial processes, featuring a hygienic design with a 2000 mm rod probe. Ideal for food, pharmaceutical, and chemical industries, it offers high accuracy with ±5 mm and a robust IP67/IP69 rating for harsh environments. With an IO-Link communication interface, this sensor ensures reliable performance and easy integration into process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Rod Probe Level Sensor, Fluid Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 2000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L and PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 2000mm x 30mm
- Weight: 2.5 kg
Key Features
- Rod probe in hygienic design with 2000 mm length
- Measurement types: switch and continuous
- Standard amplifier design with display
- High accuracy sensor element with ±5 mm accuracy and ≤2 mm reproducibility
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Output signals: PNP, PNP/NPN, 4 mA to 20 mA, 0 V to 10 V
- Protection class IP67 and IP69 for harsh environments
- Wetted parts made of stainless steel 1.4404 / 316L and PEEK
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -20 °C to +150 °C
- Cable connector M12 x 1, 5-pin with 10 m cable length
- EMC compliant with EN 61326-2-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Process control in food, pharmaceutical, and chemical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long service life reducing waste
- Energy-efficient operation with low power consumption
- Supports hygienic design reducing contamination and waste in food and pharmaceutical processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP2000-GBNMB Rod Probe Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
