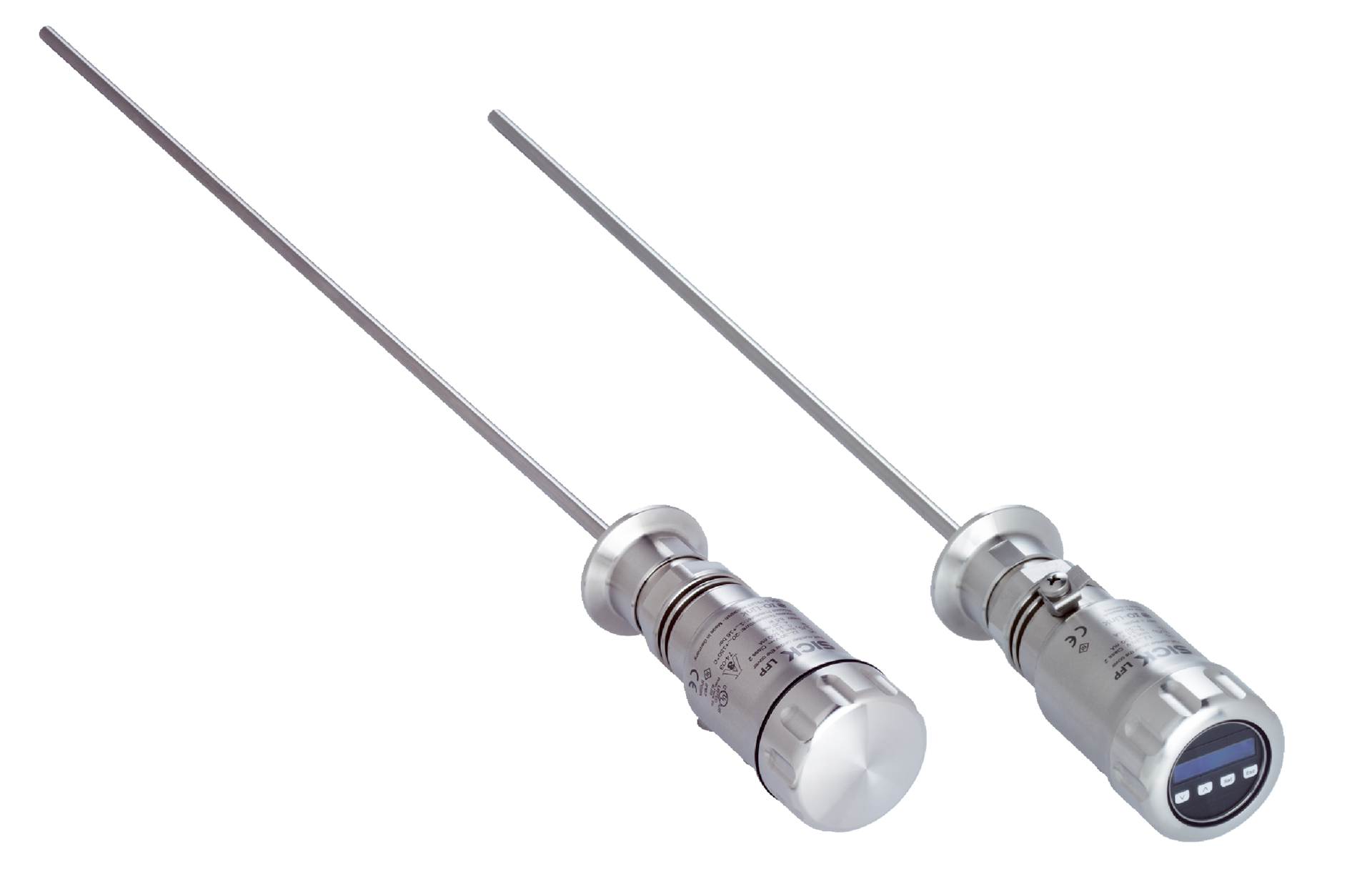

Rod Probe Level Sensor | Hygienic Design | ±5 mm Accuracy | IP67 & IP69 Rated | by SICK
The Rod Probe Level Sensor is designed for precise fluid level measurement in hygienic applications, featuring a robust stainless steel construction and a hygienic design. With a measurement range of -20 °C to +150 °C and an accuracy of ±5 mm, it's perfect for food, pharmaceutical, and chemical industries. The sensor supports IO-Link communication for smart connectivity, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Rod Probe Level Sensor, IO-Link Level Sensor, Hygienic Fluid Level Sensor, Stainless Steel Level Probe
Technical Specifications
- Measurement: Switch and continuous
- Probe type: Rod probe in hygienic design
- Probe length: 600 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –20 °C to +150 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Connection type: Round connector M12 x 1, 5-pin
- Material wetted parts: Stainless steel 1.4404 / 316L and PEEK
- Housing material: Stainless steel 1.4305 with PMMA viewing window
- Max probe load: ≤6 Nm
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 600mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 600 mm length
- Standard amplifier design with switch and continuous measurement
- High accuracy sensor element with ±5 mm accuracy and ≤2 mm reproducibility
- IO-Link communication interface for smart connectivity
- Robust stainless steel housing with IP67 and IP69 protection ratings
- Wide process temperature range from –20 °C to +150 °C
- Process pressure tolerance from –1 bar to 16 bar
- Display included for easy monitoring
- Food contact material manufacturer declaration and multiple certifications
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for hygienic and industrial applications.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and PEEK wetted parts
- Process monitoring in food, pharmaceutical, and chemical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PEEK materials ensure long service life reducing waste
- Energy-efficient operation with low power consumption
- Compliant with China RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

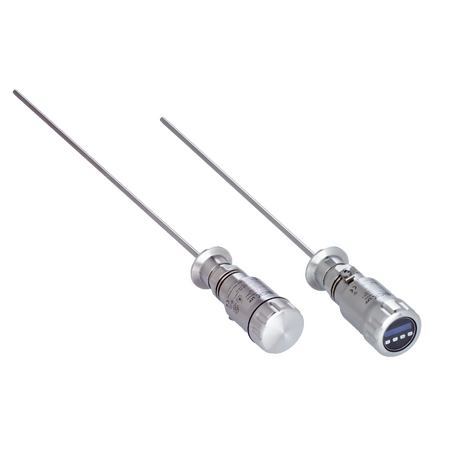

The SICK LFP0600-N1NMB Rod Probe Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing environments.
