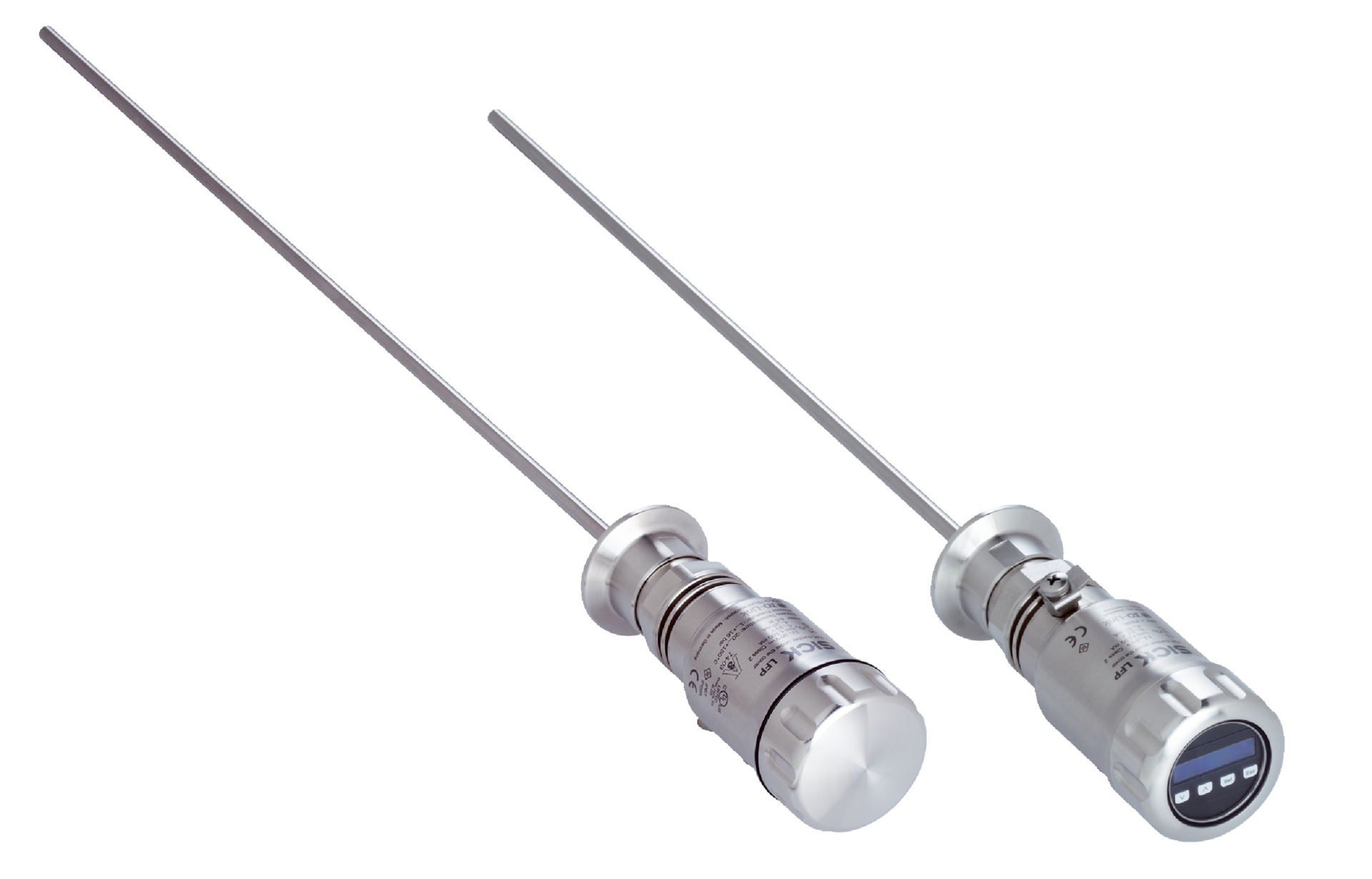

Rod Probe Level Sensor | Hygienic Design | IO-Link Communication | High Accuracy ±5 mm | by SICK
The Rod Probe Level Sensor is designed for hygienic fluid level measurement, featuring a high accuracy of ±5 mm and IO-Link communication for smart connectivity. With a wide process pressure range from -1 bar to 16 bar and a temperature range of -20 °C to +150 °C, it's perfect for applications in the food and beverage industry, as well as chemical and pharmaceutical monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Rod Probe Level Sensor, IO-Link Fluid Level Sensor, Hygienic Level Switch
Technical Specifications
- Measurement: Switch and continuous
- Probe length: 1000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectric constant: ≥5 for rod probe
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Connection: Round connector M12 x 1, 5-pin
- Enclosure rating: IP67 and IP69
- Material: Stainless steel 1.4404 / 316L PEEK wetted parts, stainless steel 1.4305 housing
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- EMC compliance: EN 61326-2-3
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Measurement modes: switch and continuous
- Standard amplifier design with display
- High accuracy sensor element with ±5 mm precision
- IO-Link communication interface for smart connectivity
- Wide process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- Stainless steel wetted parts and housing with PMMA viewing window
- Protection rating IP67 and IP69 for harsh environments
- Fast response time of 400 ms
- Long mean time to failure (MTTF) of 194.3 years
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Fluid level measurement in hygienic environments
- Process control in food and beverage industry
- Chemical and pharmaceutical fluid monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Supports hygienic design reducing contamination and waste in food processing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP1000-G1NMB Rod Probe Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in industrial and food processing applications.
