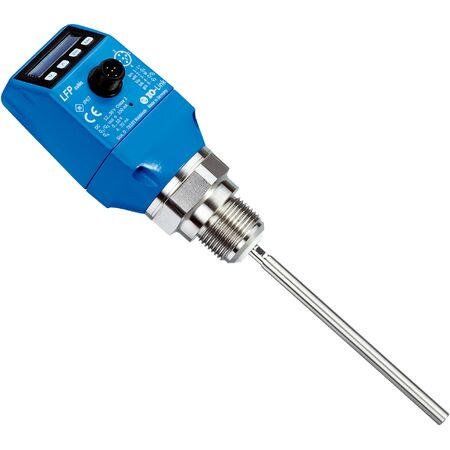

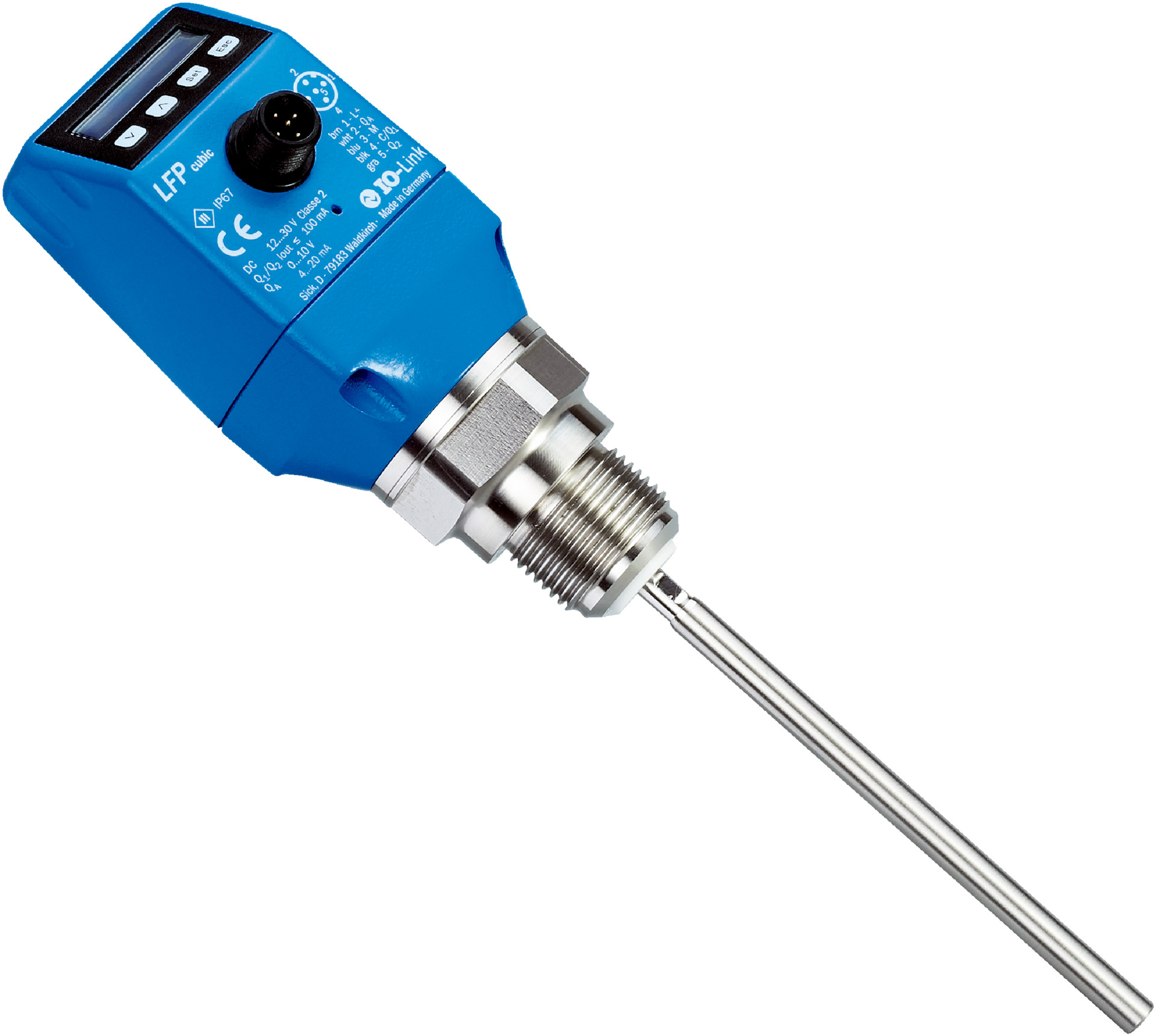

Rod Probe Level Sensor LFP1900-A5NMC | 1900 mm Length | IP67 Protection | by SICK

BRAND: SICK
SKU: 1062262
$1,425.70 List price: $1,792.00
+ −
30 Days Return Delivery Options
The Rod Probe Level Sensor LFP1900-A5NMC is designed for precise fluid level measurement in industrial processes. With a robust 1900 mm length and IP67 protection, it excels in harsh environments. Ideal for continuous and switch level detection, this sensor features multiple output signals and high accuracy, making it perfect for tanks and vessels.
Technical Specifications
  • Dimensions (H x L x W): 50mm x 1900mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Rod probe type with 1900 mm length
  • Measurement modes: switch and continuous
  • Standard amplifier design
  • Process pressure range from -1 bar to 10 bar
  • Process temperature range from -20 °C to +100 °C
  • High accuracy with ±5 mm sensor element accuracy
  • Fast response time of 400 ms
  • Communication interface via IO-Link
  • Protection class IP67 for harsh environments
  • Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
  • Stainless steel wetted parts (1.4404 / 316L), PTFE, and FKM seals
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
  • Fluid level measurement in industrial processes
  • Continuous and switch level detection in tanks and vessels
  • Suitable for liquids with varying dielectric constants
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel and high-quality materials extend product life reducing waste
  • Low power consumption (≤ 100 mA at 24 V DC) supports energy efficiency
  • IP67 rating ensures protection against environmental ingress, reducing failure and replacement
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK LFP1900-A5NMC level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
