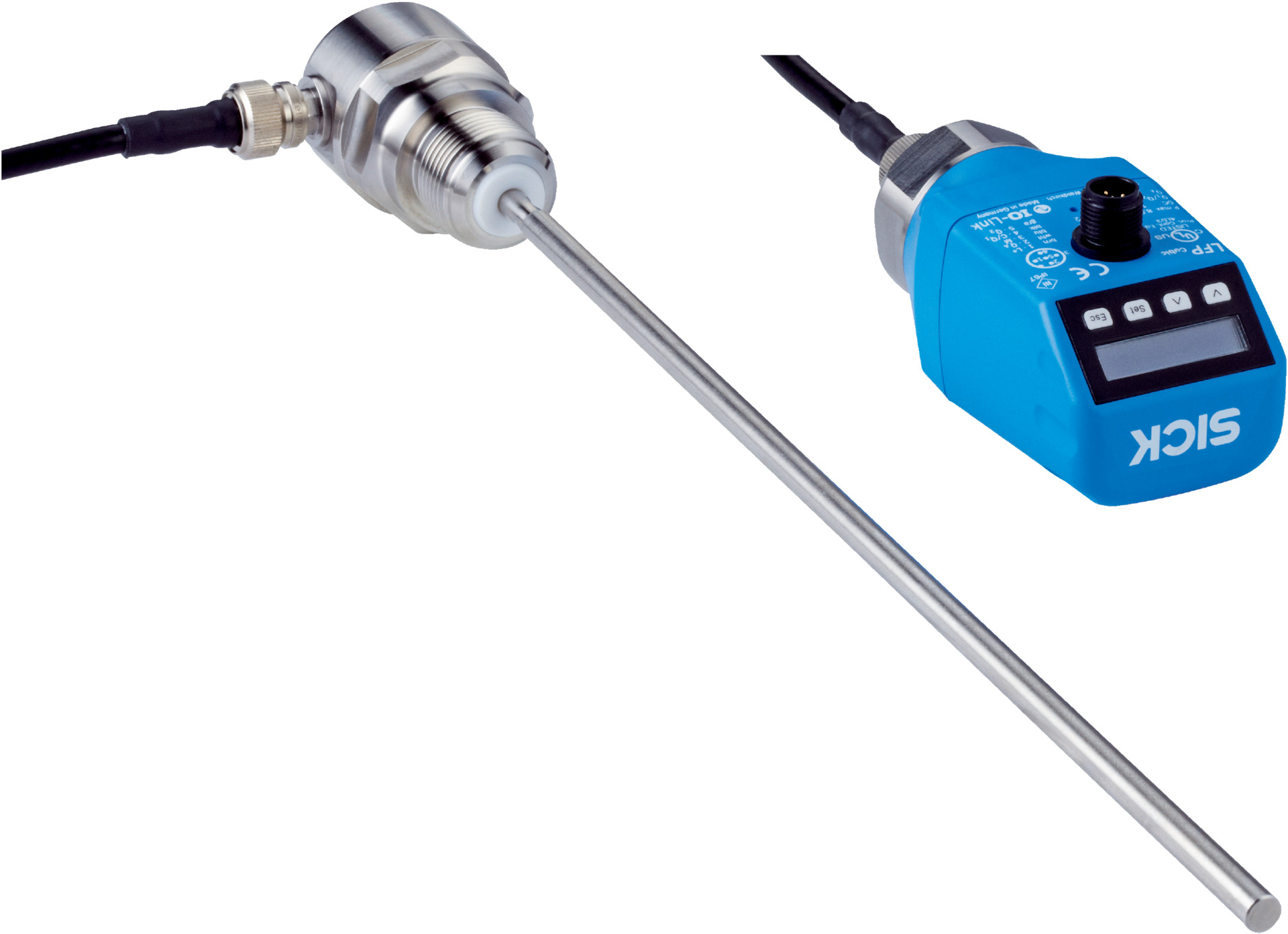

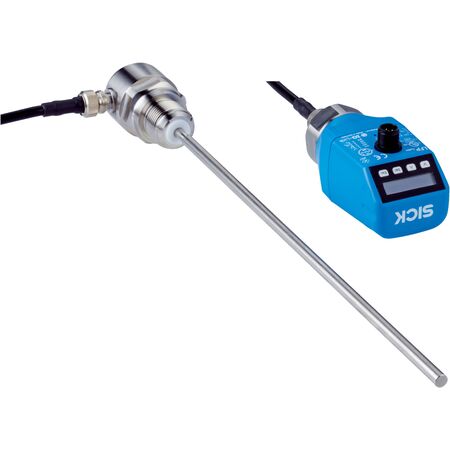

Rod Probe Level Sensor LFP2000-B5BMC | 2000 mm Length | IP67 Rated | High Accuracy | by SICK
The Rod Probe Level Sensor LFP2000-B5BMC is designed for precise fluid level measurement in industrial processes. With a 2000 mm length and IP67 rated enclosure, it offers high accuracy with ±5 mm precision and fast response time of 400 ms. Ideal for continuous and switch level detection in tanks and vessels, this sensor is perfect for applications in chemical, water treatment, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 2000 mm length for extended reach
- Remote amplifier design for flexible installation
- Measurement modes: switch and continuous
- High accuracy with ±5 mm sensor element precision
- Fast response time of 400 ms
- IP67 rated enclosure for robust protection
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Communication interface via IO-Link
- Wide process pressure range from -1 bar to 10 bar
- Suitable for process temperatures from -20 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in tanks and vessels
- Process monitoring in chemical, water treatment, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel wetted parts (1.4404 / 316L) ensure long service life reducing waste
- Low power consumption of ≤100 mA at 24 V DC
- Compliance with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2000-B5BMC level sensor is available for immediate purchase, ideal for industrial fluid level measurement and process control applications.
