Rod Probe Level Switch | 1000 mm Length | ATEX Certified | IP66/IP67 Rated | by SICK
The Rod Probe Level Switch is designed for accurate bulk solids level detection, featuring a 1000 mm probe length and an ATEX certification for use in hazardous environments. With a process pressure range of -1 bar to 6 bar and a temperature range of -20°C to +80°C, this sensor ensures reliable performance in industrial applications, minimizing waste and energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Switch
- Probe length: 1000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20°C to +80°C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 4.5 V DC to 12 V DC
- Power consumption: 1 mA / 2.5 mA
- Output signal: NAMUR
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 6 / 316L
- Housing material: Plastic
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 1000 mm length
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range: -1 bar to 6 bar
- Process temperature range: -20°C to +80°C
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Ga, Ga/Gb, Gb certified
- High accuracy sensor element with ±10 mm accuracy
- Reproducibility ≤ 5 mm
- Response time 100 ms to 500 ms
- Supply voltage 4.5 V DC to 12 V DC
- Output signal: NAMUR signal
- Enclosure rating IP66 and IP67 for dust and water protection
- Wetted parts made of stainless steel 1.4404 / 316L
- Process connection G 1, DIN 3852-A, PN 6 / 316L
- Housing material: Plastic
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with ATEX and electrical safety standards.
Applications
- Bulk solids level detection in industrial processes
- Use in environments with process pressure from -1 bar to 6 bar
- Suitable for process temperatures from -20°C to +80°C
- Applicable in ATEX hazardous zones requiring explosion protection
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- Low power consumption (1 mA / 2.5 mA) minimizes energy use
- Reliable detection reduces process waste and material spillage
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now

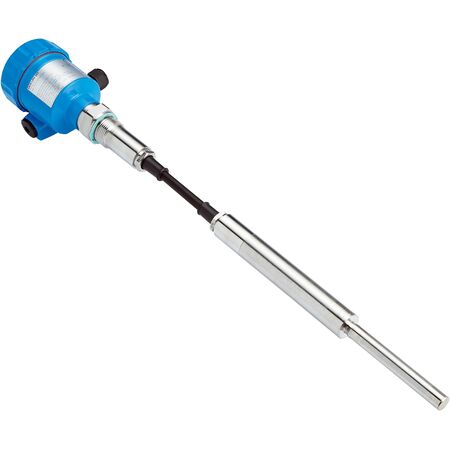

The SICK LBV321-CXTGCNKMX01000 Rod Probe Bulk Solids Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
