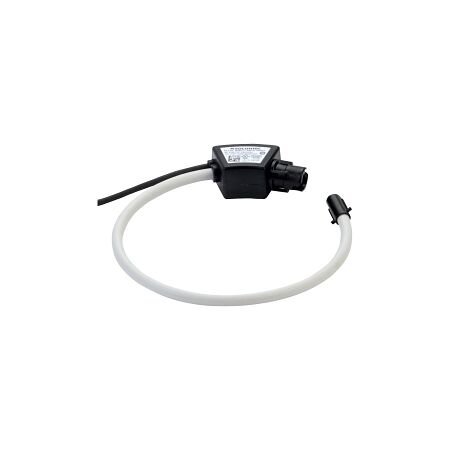

Socomec TF-80 Rogowski Coil CT 150-600A 80mm Diameter for Digiware and DIRIS A-xx

Rogowski Coil CT 150-600A | 80mm Diameter | Split Core Design | Shock Protection by NHP

BRAND: NHP

SKU: 48290574

$1,046.80 List price: $1,390.00

+ −

30 Days Return Delivery Options

Rogowski coil current transformer with 150-600A range and 80mm diameter—ideal for industrial and commercial energy monitoring. Built for accurate current measurement, with split core design for easy installation and shock protection for safety.

Description
Attachments

Product Name/Title: Socomec TF-80 Rogowski Coil CT 150-600A 80mm Diameter for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290574

Alternatively Known As: Rogowski Coil Current Transformer, Split Core CT, Current Measurement Device

Technical Specifications

Primary Rated Current: 600 A
Secondary Rated Current: 0.1 A
Rated Operating Frequency: 50-60 Hz
Max Operating Voltage: 600 V
Accuracy Class: 0.2S
Over Current Limiting Factor: FS 10
Secondary Rated Apparent Power: 0.1 VA
Current Transformer Type: Split core
Material Housing: Plastic
Secondary Connection: Plug-in connection
Number of Primary Inputs: 1
Opening Diameter: 80 mm
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 80mm x 80mm x 80mm
Weight: 1.0 kg

Key Features

Split core design for easy installation.
Calibrated for accurate current measurement.
Shock protection and snap mounting for safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Current measurement in various electrical systems

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Promotes energy efficiency by enabling accurate monitoring of electrical consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec TF-80 Rogowski Coil CT 150-600A 80mm Diameter is available now for immediate purchase, ideal for energy monitoring and management applications.

48290574-AU-Current-Transformer-Datasheet.pdf (48290574-AU-Current-Transformer-Datasheet.pdf, 223 Kb) [Download]
