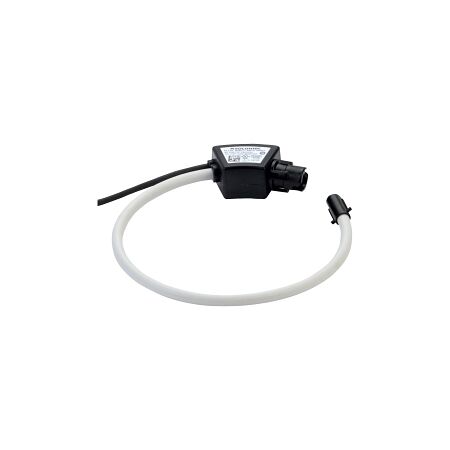

Socomec TF-300 Rogowski Coil CT 1600-6000A 300mm Diameter for Digiware and DIRIS A-xx

Rogowski Coil CT 1600-6000A | 300mm Diameter | Split Core Design | Shock Protection by NHP

BRAND: NHP

SKU: 48290577

$1,366.70 List price: $1,814.80

+ −

30 Days Return Delivery Options

Rogowski coil current transformer with 1600-6000A range and 300mm diameter—ideal for industrial and commercial energy monitoring. Built for accurate measurements, with split core design for easy installation and shock protection for safety.

Description
Attachments

Product Name/Title: Socomec TF-300 Rogowski Coil CT 1600-6000A 300mm Diameter for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290577

Alternatively Known As: Rogowski Coil Current Transformer, TF Rogowski Coil, Current Transformer 6000A

Technical Specifications

Primary Rated Current: 6000 A
Secondary Rated Current: 0.1 A
Rated Operating Frequency: 50-60 Hz
Max Operating Voltage: 600 V
Accuracy Class: 0.2S
Over Current Limiting Factor: FS 10
Secondary Rated Apparent Power: 0.1 VA
Current Transformer Type: Split core
Material Housing: Plastic
With Shock Protection: Yes
Snap Mounting: Yes
With Copper Rail: Yes
Secondary Connection: Plug-in connection
Number of Primary Inputs: 1
Opening Diameter: 300 mm
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 300mm x 300mm x 300mm
Weight: 2.5 kg

Key Features

Split core design for easy installation.
Calibrated for accurate measurements.
Shock protection included for safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Suitable for use with Digiware and DIRIS A-xx systems

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec TF-300 Rogowski Coil CT 1600-6000A 300mm Diameter is available now for immediate purchase. Ideal for industrial and commercial energy monitoring applications.

Non-Returnable & Non-Cancellable

48290577-AU-Current-Transformer-Datasheet.pdf (48290577-AU-Current-Transformer-Datasheet.pdf, 224 Kb) [Download]
