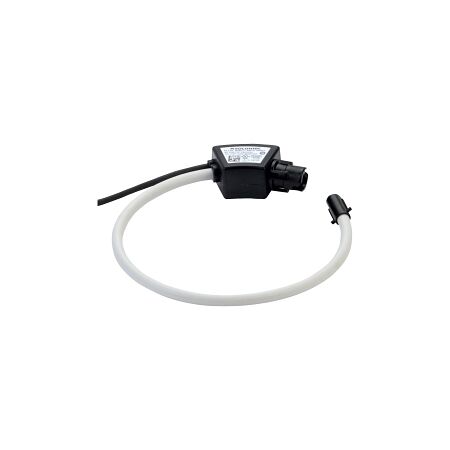

Socomec TF-600 Rogowski Coil CT 1600-6000A 600mm Diameter for Digiware and DIRIS A-xx

Rogowski Coil CT 1600-6000A | 600mm Diameter | Split Core Design | Shock Protection by NHP

BRAND: NHP

SKU: 48290578

$1,496.60 List price: $1,987.30

+ −

30 Days Return Delivery Options

Rogowski coil current transformer with 1600-6000A range and 600mm diameter—ideal for industrial and commercial energy monitoring. Built for accurate current measurement, with split core design for easy installation and shock protection for safety.

Description
Attachments

Product Name/Title: Socomec TF-600 Rogowski Coil CT 1600-6000A 600mm Diameter for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290578

Alternatively Known As: Rogowski Coil Current Transformer, Split Core CT, TF Rogowski Coil

Technical Specifications

Primary Rated Current: 6000 A
Secondary Rated Current: 0.1 A
Rated Operating Frequency: 50-60 Hz
Max Operating Voltage: 600 V
Accuracy Class: 0.2S
Over Current Limiting Factor: FS 10
Secondary Rated Apparent Power: 0.1 VA
Current Transformer Type: Split core
Material Housing: Plastic
Secondary Connection: Plug-in connection
Number of Primary Inputs: 1
Opening Diameter: 600 mm
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 600mm x 600mm x 600mm
Weight: 5 kg

Key Features

Split core design for easy installation.
Calibrated for accurate current measurement.
Shock protection and snap mounting for safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Current measurement in electrical systems

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec TF-600 Rogowski Coil CT 1600-6000A 600mm Diameter is available now for immediate purchase. Ideal for industrial and commercial energy monitoring applications.

Non-Returnable & Non-Cancellable

48290578-AU-Current-Transformer-Datasheet.pdf (48290578-AU-Current-Transformer-Datasheet.pdf, 223 Kb) [Download]
