Home/Electrical/Connection/Metering Accessories/Current Transformers & Associated Equipment/Rogowski Coil CT 600-4000A | 200mm Diameter | Split Core Design | Shock Protection by NHP

Trade Discount 25%

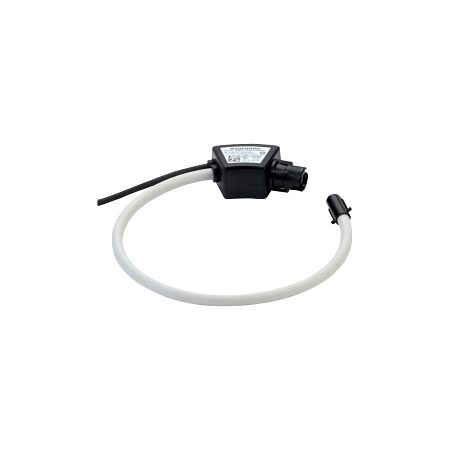

Socomec TF-200 Rogowski Coil CT 600-4000A 200mm Diameter for Digiware and DIRIS A-xx

Rogowski Coil CT 600-4000A | 200mm Diameter | Split Core Design | Shock Protection by NHP

BRAND: NHP

SKU: 48290576

$1,350.60 List price: $1,793.40

+ −

30 Days Return Delivery Options

Rogowski coil current transformer with 600-4000A range and 200mm diameter—ideal for industrial and commercial energy monitoring. Built for accurate current measurement, with split core design and shock protection for easy installation.

Description
Attachments

Product Name/Title: Socomec TF-200 Rogowski Coil CT 600-4000A 200mm Diameter for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290576

Alternatively Known As: Rogowski Coil Current Transformer, TF Rogowski Coil, Current Measurement Transformer

Technical Specifications

Primary Rated Current: 4000 A
Secondary Rated Current: 0.1 A
Rated Operating Frequency: 50-60 Hz
Max Operating Voltage: 600 V
Accuracy Class: 0.2S
Over Current Limiting Factor: FS 10
Secondary Rated Apparent Power: 0.1 VA
Current Transformer Type: Split core
Material Housing: Plastic
Secondary Connection: Plug-in connection
Number of Primary Inputs: 1
Opening Diameter: 200 mm
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 200mm x 200mm x 200mm
Weight: 2.0 kg

Key Features

Split core design for easy installation.
Calibrated for accurate current measurement.
Shock protection and snap mounting for safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Current measurement in various electrical systems

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec TF-200 Rogowski Coil CT 600-4000A 200mm Diameter is available now for immediate purchase. Ideal for industrial and commercial energy monitoring applications.

Non-Returnable & Non-Cancellable

48290576-AU-Current-Transformer-Datasheet.pdf (48290576-AU-Current-Transformer-Datasheet.pdf, 223 Kb) [Download]
