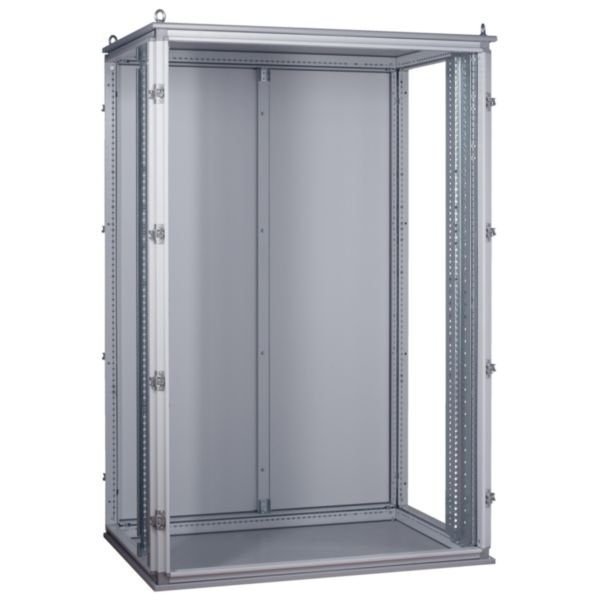

Roof Base for XL³ 6300 Enclosure | IP30 & IK07 Rated | Powder Coated Steel | Grey | @EA of 1 | by Legrand
The Roof Base for XL³ 6300 Enclosure is designed for robust electrical distribution, featuring IP30 and IK07 ratings for enhanced protection. Made from durable powder-coated steel in grey, it includes cable entry plates for easy wiring and is perfect for modular enclosure construction in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel with powder coating
- Colour: Grey (RAL 7029)
- IP Rating: IP30
- Impact Protection: IK07
- Height: 150 mm
- Width external: 1425 mm
- Width usable: 1300 mm
- Depth: 725 mm
- Fitted with cable entry plates
- Suitable for roof and bottom planking
- Weight: 25 kg
Key Features
- Designed for XL³ 6300 distribution enclosures
- IP30 and IK07 rated for protection
- Combination of roof-base assembly with structural uprights, rear and side panels
- Fitted with cable entry plates for easy wiring
- Powder coated steel construction in grey (RAL 7029)
- Dimensions suitable for enclosure building width 1425 mm and depth 725 mm
Professional Installation Requirements
- Installation by qualified electrical or construction professionals is recommended to ensure compliance with structural and electrical safety standards.
Applications
- Electrical distribution enclosures for industrial and commercial buildings
- Switchboard and power cabinet assembly
- Modular metal enclosure construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable powder coated steel reduces need for frequent replacements
- Supports modular design reducing material waste in electrical installations
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand Roof Base for XL³ 6300 Enclosure is available for immediate purchase, ideal for use in electrical distribution switchboards and power cabinets.
