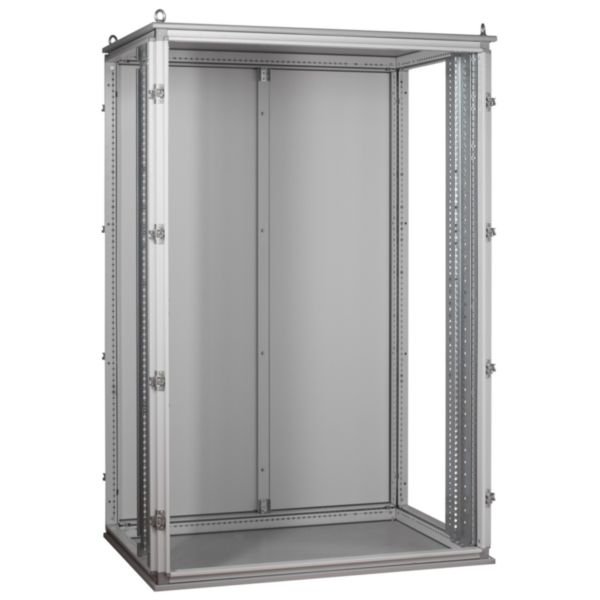

Roof Base for XL³ 6300 Enclosure | IP30 & IK07 Rated | Powder Coated Steel | Grey | @EA of 1 | by Legrand
The Roof Base for XL³ 6300 Enclosure is designed for robust electrical distribution, featuring IP30 and IK07 ratings for enhanced protection. Made from durable powder-coated steel in grey, it includes cable entry plates for easy wiring. Ideal for industrial and commercial applications, this roof base ensures compliance with safety standards while supporting efficient installation and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Roof Base for XL³ 6300 Enclosure | IP30 & IK07 Rated | Powder Coated Steel | Grey | @EA of 1 | by Legrand
Brand: Legrand
SKU: 021135
Alternatively Known As: XL3 6300 Enclosure Roof Base, Legrand Enclosure Base, Modular Enclosure Roof Base
Technical Specifications
- Material: Steel with powder coating
- Colour: Grey (RAL 7029)
- Protection rating: IP30, IK07
- Suitable for enclosure building width: 1425 mm
- Suitable for enclosure building depth: 975 mm
- Height: 150 mm
- Fitted with cable entry plates
- Compatible with XL³ 6300 distribution enclosures
- Dimensions (H x L x W): 150mm x 975mm x 1425mm
- Weight: 25 kg
Key Features
- Designed for XL³ 6300 distribution enclosures
- IP30 and IK07 rated for protection
- Combination of roof-base assembly with structural uprights and panels
- Fitted with cable entry plates for easy wiring
- Powder coated steel construction in grey (RAL 7029)
- Dimensions: Depth 975 mm, External Width 1425 mm, Usable Width 1300 mm
- Height of roof base: 150 mm
Professional Installation Requirements
- Installation should be performed by qualified electrical or construction professionals to ensure compliance with safety and structural standards.
Applications
- Electrical distribution enclosures for industrial and commercial buildings
- Switchboard and power cabinet assembly
- Modular metal enclosure construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable powder-coated steel extends product life and reduces replacement frequency
- Modular design supports efficient installation and maintenance, reducing waste
Warranty Information
Standard Legrand warranty applies, typically 1-3 years depending on region and product registration.
Available Now
The Legrand Roof Base for XL³ 6300 Enclosure is available for immediate purchase, ideal for use in electrical distribution and switchboard assembly applications.
