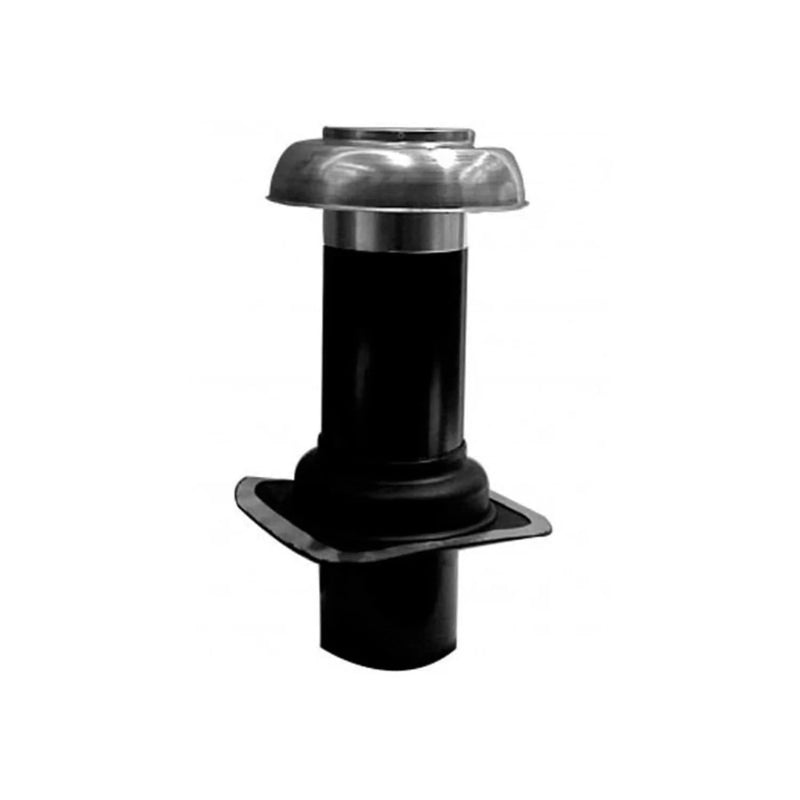

Roof Exhaust Fan Kit 150mm Axial Whisper 89L/s HDPE Tube Ventair
Ventair 150mm axial Whisper roof exhaust fan kit rated 89 l/s, 320 m3/h. Includes HDPE tube and flashing for quiet roof-mounted extraction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 150mm Axial Whisper Extract Fan, Through-Roof Exhaust Cowl Kit, Roof Exhaust Fan with Flashing and HDPE Tube
Technical Specifications
- Model: FAN1060
- Duct Size: 150 mm
- Fan Type: Axial Whisper extract
- Air Delivery: 89 L/s; 320 m³/hr free air
- Motor Power: 46 W
- Maximum Pressure: 130 Pa
- Fan Speed: 2,750 rpm
- Sound Level: 38 dB(A) at 1 m
- Supply Voltage: 220–240 V AC, 50 Hz
- Ingress Protection: IPX2
- Operating Temperature: −20°C to +80°C
- Switching: Standard
- Included Components: Aluminium cowl, roof flashing and 0.5 m HDPE tube
- Dimensions (H x L x W): 500mm x 275mm x 170mm
- Weight: 2.5 kg
Key Features
- Quiet axial fan operation at 38 dB(A)
- Suitable for 150 mm ducting systems
- Through-roof installation with integrated aluminium cowl
- Includes flashing for metal roof applications
- Includes 0.5 m HDPE tube for roof penetration connection
- Standard switched operation
- Suitable for residential bathroom, laundry and general exhaust ventilation
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Roof flashing, weather sealing and external discharge connections should be installed by a suitably qualified roofing or ventilation trade. Exhaust air must discharge outdoors, with precautions taken to prevent backflow from open-flued gas or other fuel-burning appliances.
Applications
- Bathroom exhaust ventilation
- Laundry ventilation
- Residential toilet and utility-room extraction
- General roof-mounted air extraction
- Replacement of existing 150 mm through-roof exhaust fans
Standards & Compliance
- Electrical installation: AS/NZS 3000:2018 Wiring Rules
- Fan safety requirements: AS/NZS 60335.2.80
- Mechanical ventilation design and discharge arrangements: AS 1668.2 where applicable
Environmental Benefits
- 46 W motor input provides relatively low energy consumption for the rated airflow
- Aluminium cowl components are recyclable at end of service life
- HDPE tube is recyclable where accepted by local recycling facilities
- Durable roof-mounted construction can reduce replacement frequency and material waste
Warranty Information
2-year manufacturer warranty against manufacturing defects, subject to Ventair warranty terms and correct installation. Commercial use is generally limited to a 1-year warranty.
Available Now
Available through authorised Ventair distributors in Australia.
