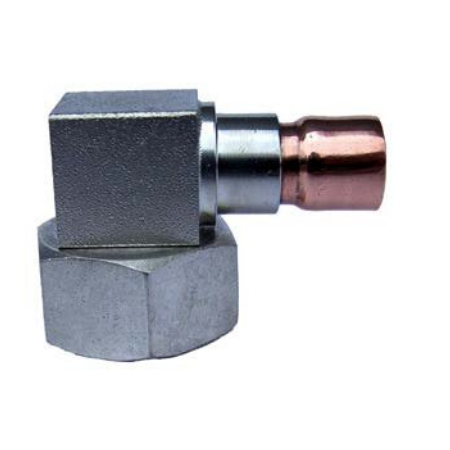

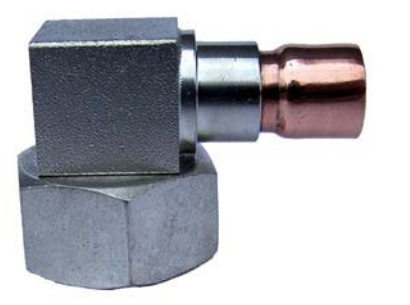

Rotalock Elbow Connector 1/4 MSAE x 3/4R/L | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
The Rotalock Elbow Connector 1/4 MSAE x 3/4R/L is engineered for HVAC and refrigeration systems, featuring a high flow port design that minimizes pressure drop. With solid copper connectors and double plating for corrosion resistance, this connector ensures durability and reliability in demanding applications. Ideal for professional installations, it supports R-410A refrigerants and complies with ISO/AS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Elbow Connector 1/4 MSAE x 3/4R/L | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
Brand: Aspen Pumps
SKU: 407-0412
Alternatively Known As: Rotalock Elbow Valve Connector, HVAC Elbow Connector, Refrigeration Elbow Fitting
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability
- Teflon gasket included
- R-410A compliant
- Safe Working Pressure: 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Designed for R-410A compliance, supporting environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps Rotalock Elbow Connector 1/4 MSAE x 3/4R/L is available for immediate purchase, ideal for HVAC and refrigeration system installations.
