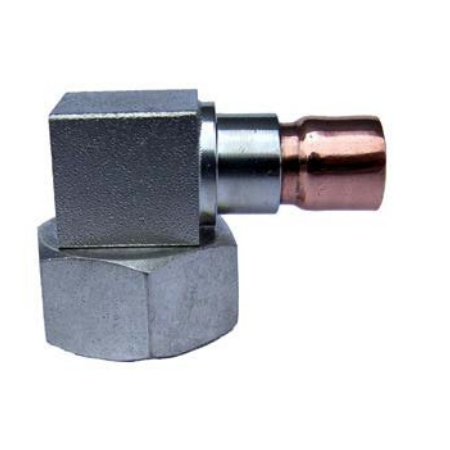

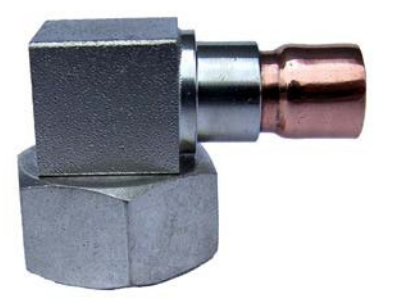

Rotalock Elbow Connector | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
The Rotalock Elbow Connector is designed for HVAC systems requiring high flow valve connections. Featuring a high flow port design that significantly lowers pressure drop and double plating for corrosion resistance, this connector ensures long-lasting performance. Ideal for refrigeration and air conditioning installations, it is manufactured to ISO/AS 5149.2 standards, making it a reliable choice for industrial fluid control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Elbow Connector | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
Brand: Aspen Pumps
SKU: 403-1416
Alternatively Known As: Rotalock Elbow Valve Connector, HVAC Elbow Connector, Refrigeration Elbow Fitting
Technical Specifications
- High flow port design with substantially lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader capability on lower port
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High flow design improves system efficiency reducing energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Rotalock Elbow Connector 7/8D x 1 R/L is available for immediate purchase, ideal for HVAC and refrigeration system installations.
