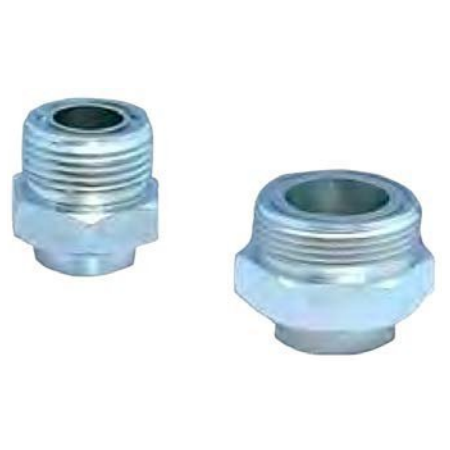

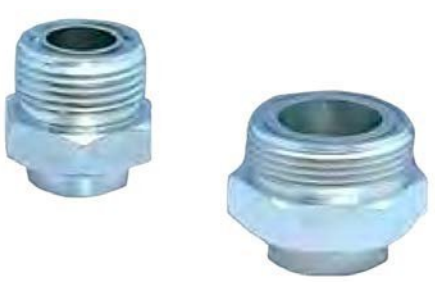

Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Male Tube Connector ID Solder is designed for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With solid copper connectors and double plating for corrosion resistance, this connector ensures reliable valve connections in refrigeration and air conditioning installations. Ideal for professional use, it meets ISO/AS 5149.2 standards for safety and environmental compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 408-2236
Alternatively Known As: Rotalock Valve Connector, Male Tube Connector, Soldered Valve Connector, HVAC Valve Connector
Technical Specifications
- High flow port design with substantially lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader capability on lower port
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Professional installation by a qualified HVAC technician or plumber is recommended to ensure proper soldering and system integrity.
Applications
- HVAC systems requiring reliable valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- High flow design improves system efficiency reducing energy consumption
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Rotalock Male Tube Connector ID Solder is available for immediate purchase, ideal for HVAC, refrigeration, and industrial fluid control applications.
