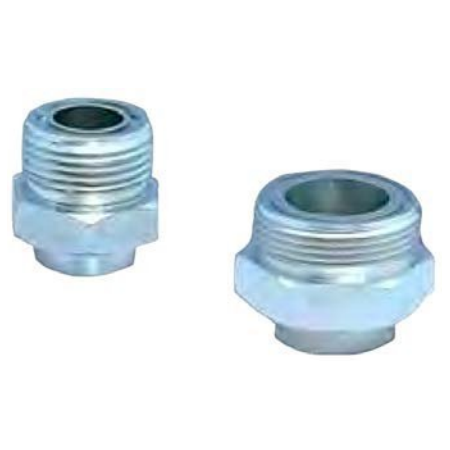

Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
The Rotalock Male Tube Connector ID Solder is designed for HVAC and refrigeration systems, featuring a high flow port design that significantly reduces pressure drop. With double plating for corrosion resistance and solid copper connectors, this valve ensures durability and ease of installation, making it ideal for industrial fluid control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
Brand: Aspen Pumps
SKU: 408-1216
Alternatively Known As: Rotalock Male Connector, Male Tube Connector, Solder Tube Valve Connector
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve on lower port
- Packaged with Teflon gasket
- Safe Working Pressure (SWP): 4380 Kpa
- R-410A compliant
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Compliance with R-410A refrigerant standards supports environmentally safer HVAC systems
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Rotalock Male Tube Connector ID Solder is available for immediate purchase, ideal for HVAC and refrigeration system installations.
