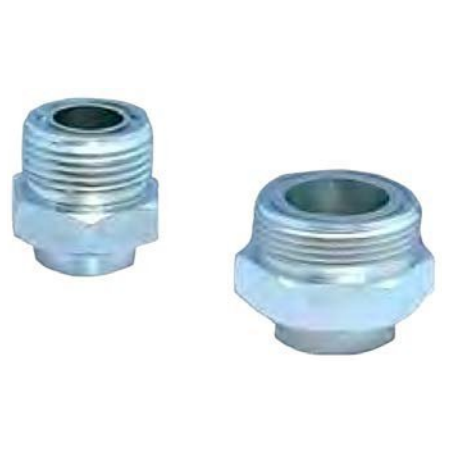

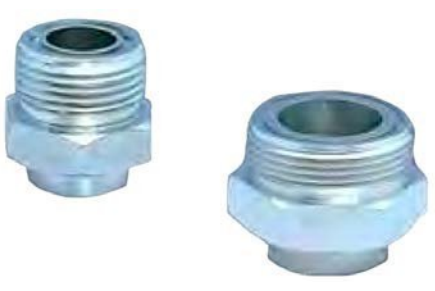

Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
The Rotalock Male Tube Connector ID Solder is designed for HVAC systems requiring high flow valve connections. Featuring a high flow port design that reduces pressure drop and solid copper connectors for easy installation, this connector is ideal for refrigeration and air conditioning installations. With double plating for corrosion resistance and compliance with R-410A standards, it ensures a reliable and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Male Tube Connector ID Solder | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
Brand: Aspen Pumps
SKU: 408-2636
Alternatively Known As: Rotalock Valve Connector, Male Tube Connector, High Flow Rotalock Valve, Copper Tube Connector
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant
- Safe Working Pressure: 4380 Kpa
- Manufactured to ISO/AS 5149.2
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket for secure sealing
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2 standards
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or plumber to ensure proper soldering and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Compliance with R-410A refrigerant standards supports environmentally safer HVAC systems
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Rotalock Male Tube Connector ID Solder is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring reliable high flow valve connections.
