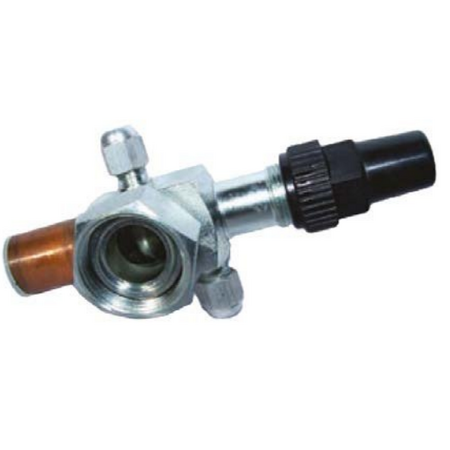

Rotalock Service Valve | Dual Access | High Flow Design & Corrosion Resistant | by Aspen Pumps
The Rotalock Service Valve is designed for HVAC and refrigeration systems, featuring a dual access design with high flow port technology that significantly reduces pressure drop. Built with solid copper connectors and double plating for corrosion resistance, this valve is ideal for professional installations, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve | Dual Access | High Flow Design & Corrosion Resistant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-081220
Alternatively Known As: Dual Access Rotalock Valve, HVAC Service Valve, Refrigeration Service Valve, Copper Connector Valve
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Dual access ports with Schrader valve on lower port
- Teflon gasket included
- R-410A compliant
- Safe Working Pressure: 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 50mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician or qualified plumber to ensure compliance with safety and performance standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning service and maintenance
- Plumbing systems needing dual access service valves
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigerating systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Durable corrosion-resistant plating extends product life, reducing waste
- Compliance with R-410A refrigerant standards supports environmentally safer HVAC systems
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 1/2 ID x 3/4 R/L is available for immediate purchase, ideal for HVAC, refrigeration, and plumbing service applications.
