Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps

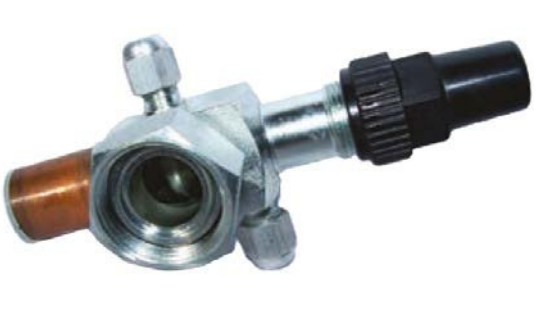

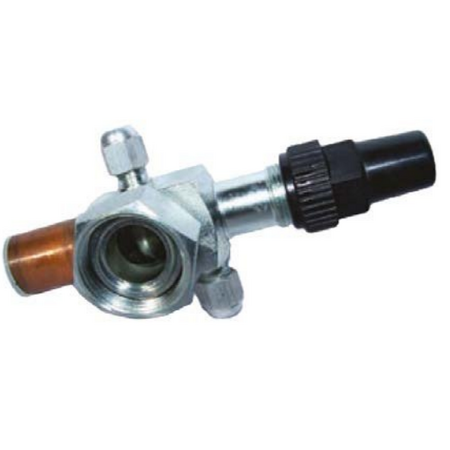

The Rotalock Service Valve (Dual Access) is engineered for high flow applications in HVAC and refrigeration systems. Featuring a high flow port design that minimizes pressure drop and double plated for superior corrosion resistance, this valve ensures reliable performance. Ideal for professional installation, it supports R-410A refrigerants and is compliant with ISO/AS 5149.2 standards, making it a perfect choice for industrial and commercial fluid control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-061220
Alternatively Known As: Dual Access Rotalock Valve, High Flow Service Valve, HVAC Service Valve, Refrigeration Service Valve
Technical Specifications
- High flow port design with substantially lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve on lower port
- Packaged with Teflon gasket
- R-410A compliant
- Safe Working Pressure (SWP): 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 70mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician or qualified professional to ensure compliance with safety and system requirements.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning service and maintenance
- Industrial and commercial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Designed for R-410A refrigerant systems supporting environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 3/8 ID x 3/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and service.
