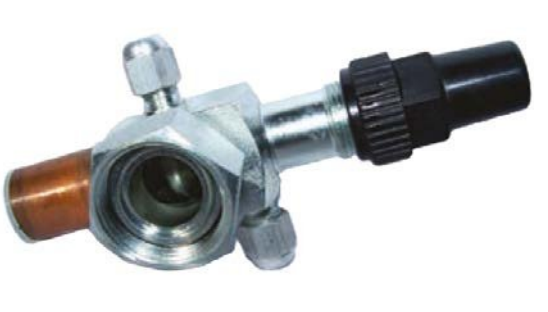

Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for high flow control in HVAC systems, featuring a unique design that minimizes pressure drop. With double plated corrosion resistance and solid copper connectors, this valve ensures reliable performance and longevity. Ideal for refrigeration and air conditioning maintenance, it includes a Teflon gasket for secure sealing and is R-410A compliant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-061620
Alternatively Known As: Dual Access Rotalock Valve, High Flow Service Valve, HVAC Service Valve, Refrigeration Rotalock Valve
Technical Specifications
- High flow port design with lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve on lower port
- Teflon gasket included
- R-410A compliant
- Safe Working Pressure: 4380 Kpa
- Manufactured to ISO/AS 5149.2
- Dimensions (H x L x W): 70mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance and extended service life
- Solid copper connectors for ease of installation
- Double access ports with lower port having Schrader valve capability
- Packaged with Teflon gasket for reliable sealing
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2 standards
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician or qualified professional to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve control
- Refrigeration and air conditioning service and maintenance
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 - Refrigerating systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Designed for efficient fluid flow minimizing energy loss in HVAC systems
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects in materials and workmanship.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 3/8 ID x 1 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
