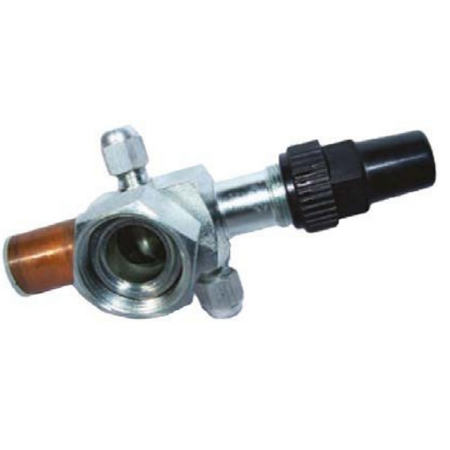

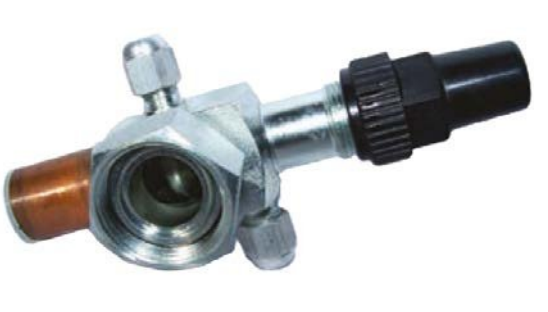

Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With double plated corrosion resistance and solid copper connectors, this valve ensures ease of installation and longevity. Ideal for refrigeration and air conditioning maintenance, it complies with R-410A standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-263650
Alternatively Known As: Dual Access Rotalock Valve, High Flow Service Valve, HVAC Service Valve
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader capability on lower port
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 1.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician to ensure compliance with safety and refrigerant handling standards.
Applications
- HVAC systems requiring high flow service valves
- Refrigeration and air conditioning maintenance
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- R-410A compliance supports environmentally safer refrigerant use
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 1-5/8 ID x 2-1/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and servicing.
