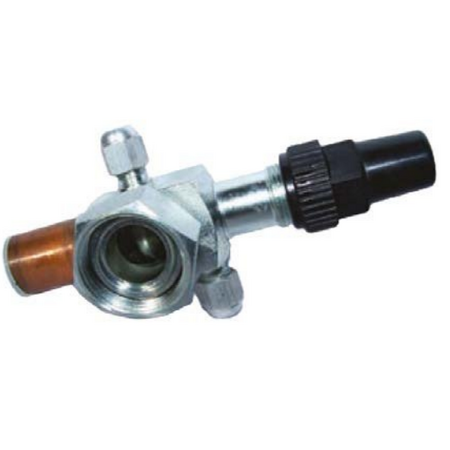

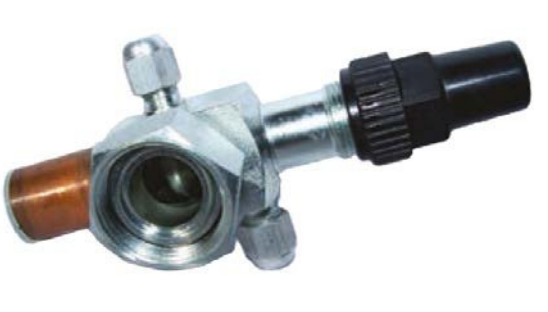

Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With double plated corrosion resistance and solid copper connectors, this valve ensures reliable performance in refrigeration and air conditioning maintenance. Ideal for professional installation, it meets R-410A compliance and is perfect for industrial and commercial fluid control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-101620
Alternatively Known As: Rotalock Dual Access Valve, HVAC Service Valve, Refrigeration Service Valve, Copper Connector Valve
Technical Specifications
- High flow port design with substantially lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability on lower port
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow service valves
- Refrigeration and air conditioning maintenance
- Industrial and commercial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Designed for R-410A compliance supporting environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 5/8 ID x 1 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
