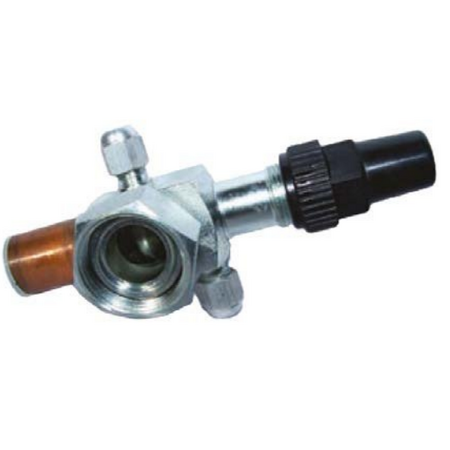

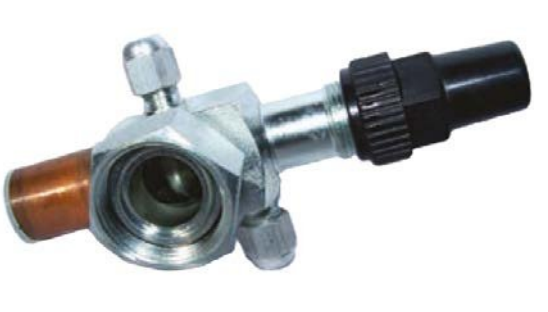

Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With double plating for corrosion resistance and solid copper connectors, this valve ensures reliable performance in refrigeration and air conditioning maintenance. Ideal for professional installation, it supports R-410A compliance for environmentally friendly refrigerants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-122030
Alternatively Known As: Rotalock Dual Access Valve, HVAC Service Valve, Refrigeration Service Valve
Technical Specifications
- High flow port design with lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve on lower port
- Packaged with Teflon gasket
- R-410A compliant, SWP 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
- Dimensions (H x L x W): 60mm x 120mm x 80mm
- Weight: 0.5 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader capability
- Packaged with Teflon gasket
- R-410A compliant with SWP 4380 Kpa
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician or qualified professional to ensure compliance and safety.
Applications
- HVAC systems requiring high flow service valves
- Refrigeration and air conditioning maintenance
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and heat pumps
Environmental Benefits
- Durable corrosion-resistant plating extends product life, reducing waste
- Designed for R-410A compliance supporting environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Rotalock Service Valve (Dual Access) 3/4 ID x 1-1/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance.
