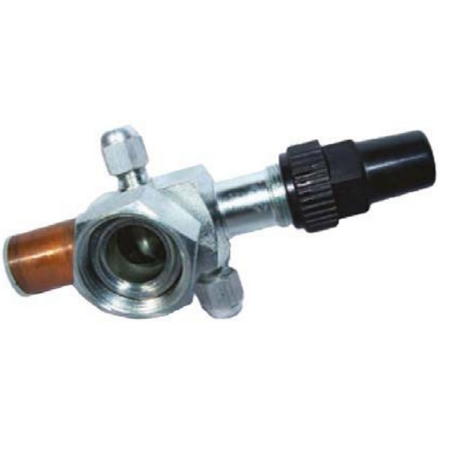

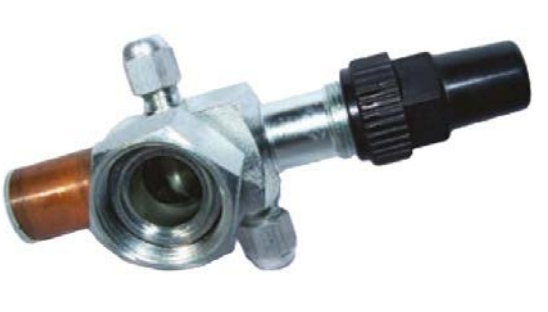

Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Service Valve (Dual Access) is engineered for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With double plated corrosion resistance and solid copper connectors, this valve ensures reliable performance in refrigeration and air conditioning maintenance. Ideal for professional installation, it supports R-410A refrigerant systems and complies with ISO/AS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Service Valve (Dual Access) | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 401-262835
Alternatively Known As: Dual Access Rotalock Valve, High Flow Service Valve, HVAC Service Valve, Refrigeration Service Valve
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve on lower port
- Teflon gasket included
- Safe Working Pressure (SWP): 4380 Kpa
- R-410A compliant
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 80mm x 120mm x 45mm
- Weight: 1.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation should be performed by a licensed HVAC technician or qualified professional to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow service valves
- Refrigeration and air conditioning maintenance
- Industrial and commercial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Designed for R-410A refrigerant systems supporting environmentally safer refrigerants
- Durable corrosion-resistant plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects in materials and workmanship.
Available Now
The Aspen Rotalock Service Valve (Dual Access) 1-5/8 ID x 1-3/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
