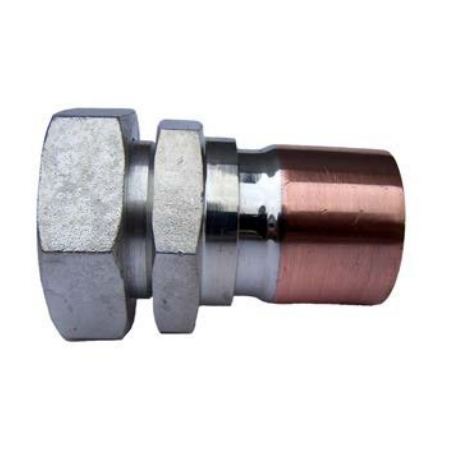

Rotalock Straight Connector 3/8 ID x 3/4 R/L | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Straight Connector 3/8 ID x 3/4 R/L is designed for HVAC systems requiring high flow valve connections. With a high flow port design that minimizes pressure drop and solid copper connectors for easy installation, this connector is perfect for refrigeration and air conditioning applications. Its double plating ensures corrosion resistance, making it a reliable choice for industrial fluid control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Straight Connector 3/8 ID x 3/4 R/L | High Flow Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 402-0612
Alternatively Known As: Rotalock Valve Connector, Straight Rotalock Coupling, HVAC Rotalock Connector
Technical Specifications
- High flow port design with substantially lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability
- Packaged with Teflon gasket
- Safe Working Pressure: 4380 Kpa
- R-410A compliant
- Manufactured to ISO/AS 5149.2 standards
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and heat pumps
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- R-410A compliance supports use with environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects in materials and workmanship.
Available Now
The Aspen Pumps Rotalock Straight Connector 3/8 ID x 3/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system installations.
