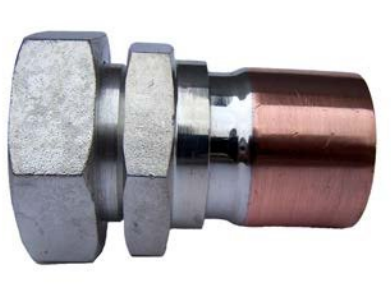

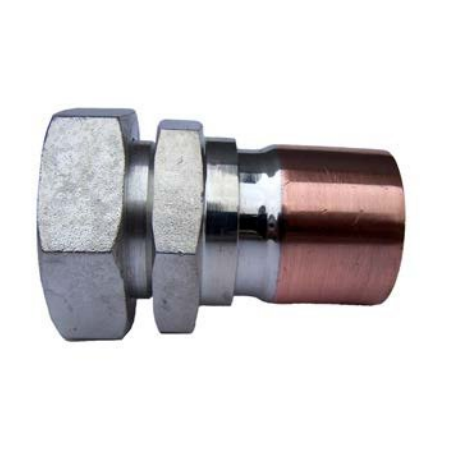

Rotalock Straight Connector | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
The Rotalock Straight Connector is designed for HVAC systems, featuring a high flow port design that significantly reduces pressure drop. With solid copper connectors and double plating for corrosion resistance, this connector ensures durability and reliability in refrigeration and air conditioning installations. Ideal for professional HVAC technicians, it supports R-410A refrigerants and is packaged with a Teflon gasket for optimal sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Straight Connector | High Flow Design | Corrosion Resistant | Solid Copper | by Aspen Pumps
Brand: Aspen Pumps
SKU: 402-1828
Alternatively Known As: Rotalock Valve Connector, Straight Rotalock Coupling, HVAC Rotalock Connector
Technical Specifications
- High flow port design with lowered pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant
- Safe Working Pressure: 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with a safe working pressure of 4380 Kpa
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and heat pumps
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- R-410A compliance supports use with environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps Rotalock Straight Connector 1-1/8 ID x 1-3/4 R/L is available for immediate purchase, ideal for HVAC and refrigeration system installations.
