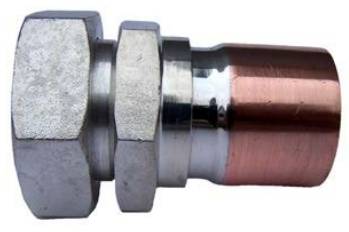

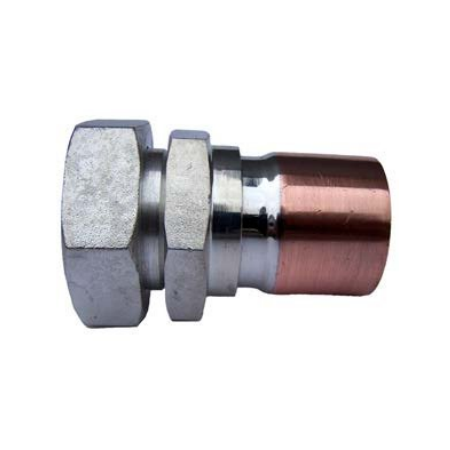

Rotalock Straight Connector | High Flow Design | Solid Copper with Double Plating | R-410A Compliant | by Aspen Pumps
The Rotalock Straight Connector is designed for high flow valve connections in HVAC and refrigeration systems. Featuring a solid copper construction with double plating for corrosion resistance, this connector ensures reliable performance and compliance with R-410A refrigerants. Ideal for industrial fluid control applications, it includes a Teflon gasket for optimal sealing and is manufactured to ISO/AS 5149.2 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Straight Connector | High Flow Design | Solid Copper with Double Plating | R-410A Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 402-0416
Alternatively Known As: Rotalock Valve Connector, High Flow Rotalock Connector, HVAC Rotalock Valve, Refrigeration Valve Connector
Technical Specifications
- Connection Size: 1/4 inch ID x 1 inch R/L
- Safe Working Pressure (SWP): 4380 KPa
- Material: Solid Copper Connectors with Double Plating
- Compliance: ISO/AS 5149.2, R-410A refrigerant compatible
- Includes Teflon Gasket for sealing
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket
- R-410A compliant with Safe Working Pressure (SWP) of 4380 KPa
- Manufactured in accordance with ISO/AS 5149.2 standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and compliance with safety standards.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning installations
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- R-410A compliance supports use with environmentally safer refrigerants
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Rotalock Straight Connector is available for immediate purchase, ideal for HVAC, refrigeration, and industrial fluid control applications.
