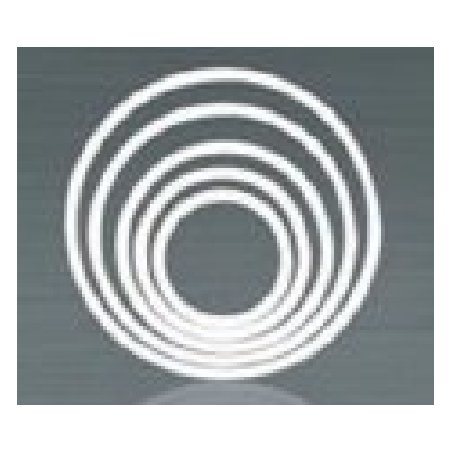

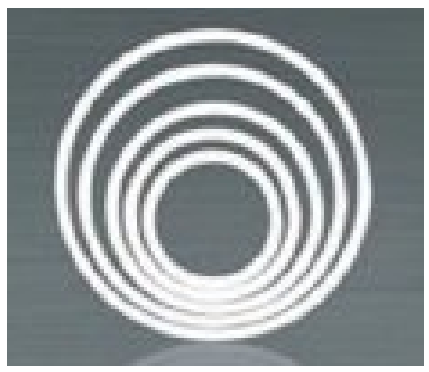

Rotalock Teflon Gasket | High Flow Port Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
The Rotalock Teflon Gasket is designed for HVAC systems requiring high flow valve connections, featuring a high flow port design that significantly reduces pressure drop. With double plating for corrosion resistance and solid copper connectors, this gasket ensures reliable sealing and extended service life, making it ideal for refrigeration and air conditioning applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotalock Teflon Gasket | High Flow Port Design | Corrosion Resistant | Solid Copper Connectors | by Aspen Pumps
Brand: Aspen Pumps
SKU: 400-36
Alternatively Known As: Rotalock Valve Gasket, Teflon Valve Seal, HVAC Valve Gasket, Refrigeration Valve Gasket
Technical Specifications
- High flow port design reduces pressure drop
- Double plated for corrosion resistance
- Solid copper connectors
- Double access ports with Schrader valve capability
- Safe Working Pressure (SWP): 4380 Kpa
- Manufactured in accordance with ISO/AS 5149.2
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- High flow port design with substantially lowered pressure drop across the valve
- Double plated for ultimate corrosion resistance over extended service life
- Solid copper connectors for ease of installation
- Double access ports on service valves with lower port having Schrader valve capability
- Packaged with Teflon gasket for reliable sealing
- R-410A compliant with a safe working pressure of 4380 Kpa
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and system integrity.
Applications
- HVAC systems requiring high flow valve connections
- Refrigeration and air conditioning service valves
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Corrosion resistance extends product life, reducing waste and replacement frequency
- Compliant with R-410A refrigerant standards supporting environmentally safer refrigerants
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps Rotalock Teflon Gasket is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
