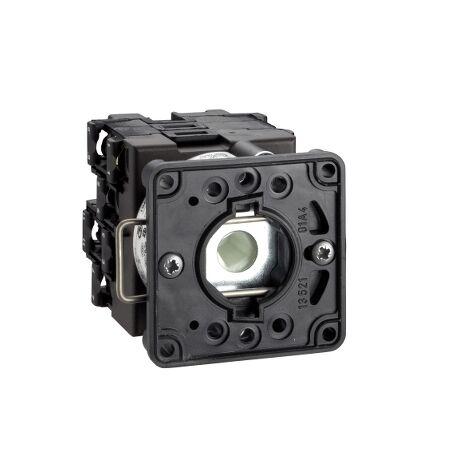

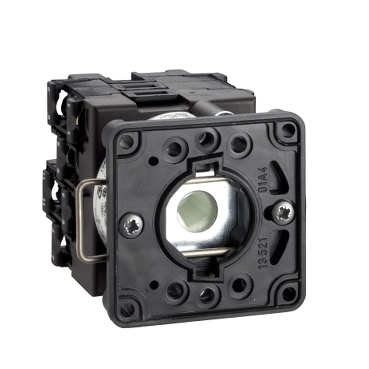

Rotary Cam Switch Dia 22 | 2-Pole | 20A Current Rating | IP65 Rated | @Pack of 1 | by Clipsal
The CAMSWITCH Dia 22 is a robust rotary cam switch designed for reliable operation in industrial control panels. With a 20A current rating and a 45° switching angle, it ensures efficient on/off switching for machinery and electrical distribution boards. Ideal for commercial and light industrial environments, this switch features a durable design that minimizes energy loss and reduces replacement frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Cam Switch Dia 22 | 2-Pole | 20A Current Rating | IP65 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK2F013QC
Alternatively Known As: Rotary cam switch, 2-pole rotary switch, Clipsal 22mm switch, industrial selector switch, SCHK2F013QC switch
Technical Specifications
- Type: Rotary cam switch
- Poles: 2
- Current rating: 20A
- Switching angle: 45°
- Panel cutout diameter: 22mm
- Mounting: Panel mount
- Contact material: Silver alloy
- Operating temperature: -25°C to +55°C
- Ingress protection: IP65 (front)
- Dimensions (H x L x W): 45mm x 60mm x 45mm
- Weight: 0.15 kg
Key Features
- 2-pole rotary cam switch
- 20A current rating
- 45° switching angle
- Designed for 22mm diameter panel mounting
- Robust and reliable operation
- Easy installation with standard panel cutout
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Industrial control panels
- Machinery on/off switching
- Electrical distribution boards
- Commercial and light industrial environments
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Reliable switching minimizes energy loss in control circuits
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CAMSWITCH Dia 22 SCHK2F013QC is available for immediate purchase. Ideal for industrial and commercial control panel applications.
