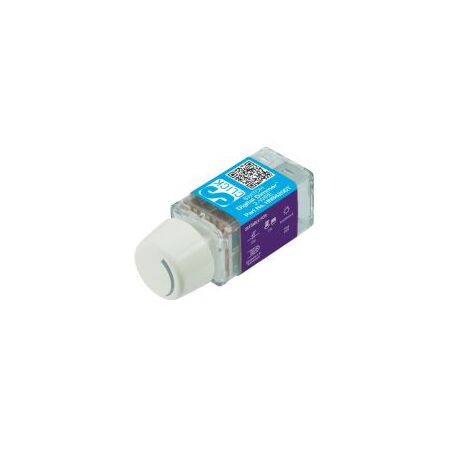

Rotary Digital Dimmer Switch Mech 2-Wire 240V 350W S-Click
S-Click rotary digital dimmer mech features 2-wire 240V 350W rating, push button on/off and 100mW standby. Ideal for dimmable LED lighting on HPM or Clipsal plates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Rotary LED Dimmer Switch, Digital Rotary Dimmer, 2-Wire Dimmer Switch, Push Button Rotary Dimmer
Technical Specifications
- Operating Voltage: 230–240V AC, 50Hz
- Maximum Load: 350W
- Minimum Load: 1W
- Maximum Current: 1.5A
- Dimmable LED Load: Up to 250W
- Incandescent, 240V Halogen and Dichroic Load: Up to 350W
- Dimmable CFL Load: Up to 150W
- Dimming Type: Trailing edge with linear response
- Standby Power: 100mW
- Operating Temperature: 0°C to +50°C
- Plate Compatibility: HPM and Clipsal style wall plates
- Indoor Use: Yes; not rated for outdoor installation
- Motor and Fan Compatibility: Not suitable
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Rotary digital dimmer and push-button on/off switch in one
- Designed for dimmable LED lighting
- Deep dimming to zero on most compatible lamps
- Programmable minimum brightness to help reduce flicker and starting issues
- Over-current, over-voltage and over-temperature protection
- Configurable illuminated LED indicator
- Retains settings after power loss and restarts off
- Patented ripple-tone rejection
- Knobs included for HPM and Clipsal style wall plates
- Supports multi-way dimming when used with an HNS020RB remote button
Professional Installation Requirements
- Must be installed as part of a fixed-wire electrical installation by a licensed or suitably qualified electrician in accordance with applicable Australian electrical installation requirements. The load side may remain live when switched off because this is a solid-state dimmer; isolate the circuit at the circuit breaker before electrical work. ([shop.cnw.com.au](https://shop.cnw.com.au/medias/CABHNS620DT.pdf?context=bWFzdGVyfHJvb3R8NTQwMDQxfGFwcGxpY2F0aW9uL3BkZnxhRE14TDJnMll5ODVPRFExTURZek16ZzFNVEU0TDBOQlFraE9Vell5TUVSVUxuQmtaZ3xkYzBjZWZkYjZhNmRjMDlmYzBhZWU1NzY4NTcxMjk0N2ZjODA0MzQwMWZjMWRiYjRiMTIxNjhiZWM5YTdmMjBj))
Applications
- Residential dimmable LED lighting
- Commercial interior lighting with compatible dimmable lamps
- Dimmable CFL, incandescent, 240V halogen and compatible low-voltage lighting systems
- Single-location lighting control and multi-way dimming with the compatible remote button
Standards & Compliance
- Manufacturer-declared compliance with AS/NZS 60669.2.1 for electronic switches and dimmers
- Manufacturer-declared compliance with CISPR 15 for radio disturbance characteristics of lighting equipment
Environmental Benefits
- 100mW standby consumption helps reduce energy use when the lighting circuit is switched off
- Supports energy-efficient dimmable LED and CFL lighting
- Dimming can reduce lighting energy consumption and extend lamp service life when correctly configured
- Solid-state construction and protective functions can help reduce premature product and lamp replacement
Warranty Information
Legend Corporation Limited provides a 12-month warranty from the invoice date to the initial purchaser against manufacturing and material defects, subject to correct installation, maintenance and operation within specification. Installation by a licensed electrical contractor is a warranty condition. ([sparkydirect.com.au](https://www.sparkydirect.com.au/assets/brochures/HNS630DT.pdf?9796261059=))
Available Now
Available through S-Click/CABAC and authorised Australian electrical distributors, subject to distributor stock.
