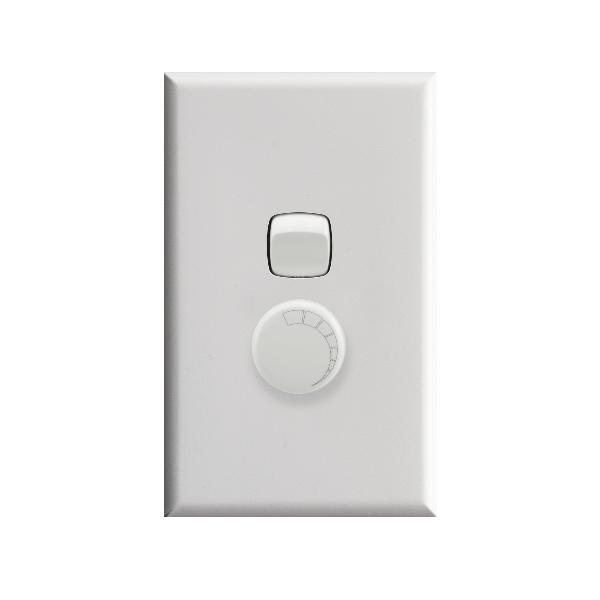

Rotary Dimmer Switch 250VA | Quiet Operation | Soft Start | White by Legrand

BRAND: Legrand
SKU: XL250LWE
$123.80 List price: $154.20
+
Rotary dimmer switch with 250VA load rating and quiet operation—ideal for residential and commercial lighting. Built for smooth dimming, with soft start to extend lamp life and over-temperature protection.

Product Name/Title: Rotary Dimmer Switch 250VA | Quiet Operation | Soft Start | White by Legrand

Brand: Legrand

SKU: XL250LWE

Alternatively Known As: Rotary Dimmer Switch, Leading Edge Dimmer, 250VA Dimmer, HPM Dimmer, Excel Dimmer

Technical Specifications
  • Dimming Type: Leading Edge Rotary
  • Load Rating: 250VA
  • Compatible Loads: Wirewound transformers, incandescent, 240V halogen lamps
  • Operation: Quiet and flicker free
  • Protection: Over-temperature protection with automatic dimming
  • Cleaning: Use damp cloth only, no solvents or cleaning agents
  • Dimensions (H x L x W): 77mm x 200mm x 130mm
  • Weight: 0.12 kg
Key Features
  • 250VA Rating
  • Quiet operation
  • Flicker free - no flickering of the lamp due to ripple injections on the mains supply
  • Soft start – lamp turns on gradually to increase lamp life
  • Over-temperature protection – lamp automatically dims if dimmer is overloaded
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Suitable for dimming wirewound transformers
  • Incandescent loads
  • 240V halogen lamps
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Soft start feature extends lamp life, reducing waste and replacement frequency
  • Energy-efficient dimming reduces power consumption
Warranty Information

1 Year Warranty

Available Now

The HPM Excel 250VA 2 Wire Vertical Leading Edge Rotary Dimmer White is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
