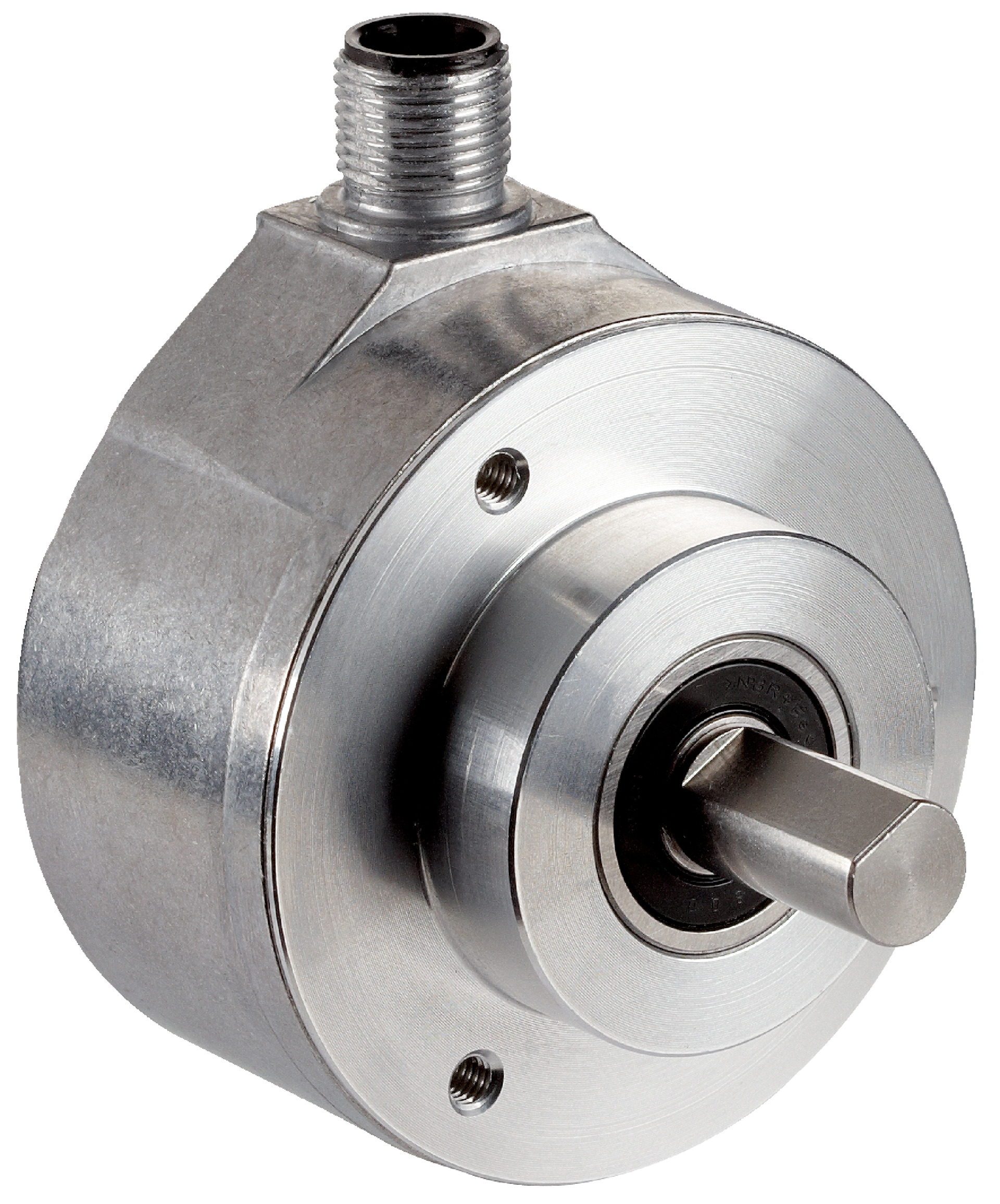

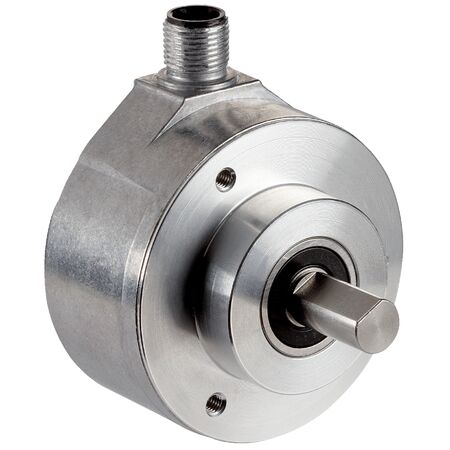

Rotary Encoder AFM60A-S4AC008192 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
The Rotary Encoder AFM60A-S4AC008192 offers high resolution with 8,192 steps per revolution, making it ideal for industrial automation and precision machinery. With a robust aluminum housing and IP65/IP67 ratings, it ensures reliable performance in harsh environments. Designed for safety-critical applications, this encoder features fast initialization and low power consumption, providing accurate position feedback for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder AFM60A-S4AC008192 | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037775
Alternatively Known As: Rotary Encoder, High-Resolution Encoder, Industrial Position Sensor, SSI Encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W
- Connection: Male M12, 8-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Solid shaft with face mount flange design
- Robust aluminum die cast housing and stainless steel shaft
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Low operating torque and startup torque for efficient operation
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
- Adjustable code sequence parameters and Gray code output
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S4AC008192 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
