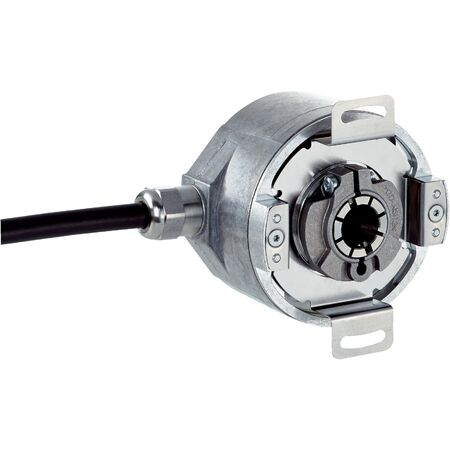

Rotary Encoder AFM60B | 8192 Steps/Rev | IP65/IP67 Rated | by SICK
The Rotary Encoder AFM60B offers high precision with 8,192 steps per revolution and a robust design featuring a stainless steel shaft and aluminum housing. Ideal for industrial automation and safety-critical applications, it ensures reliable performance with a mean time to dangerous failure (MTTFD) of 250 years and operates at speeds up to 9,000 min⁻¹. With IP65 and IP67 ratings, it provides excellent protection against dust and water, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit), 4,096 revolutions (12 bit)
- Max resolution: 13 bit x 12 bit (8,192 x 4,096)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with stainless steel shaft and aluminum housing
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection included
- Low power consumption of ≤ 0.7 W
- Communication via SSI interface with Sin/Cos signals
- High repeatability with standard deviation of 0.002°
- Resistance to shocks up to 70 g and vibration up to 30 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing lifetime reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-TEKK008192 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
