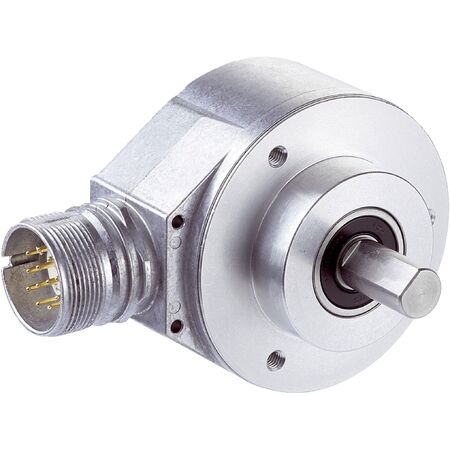

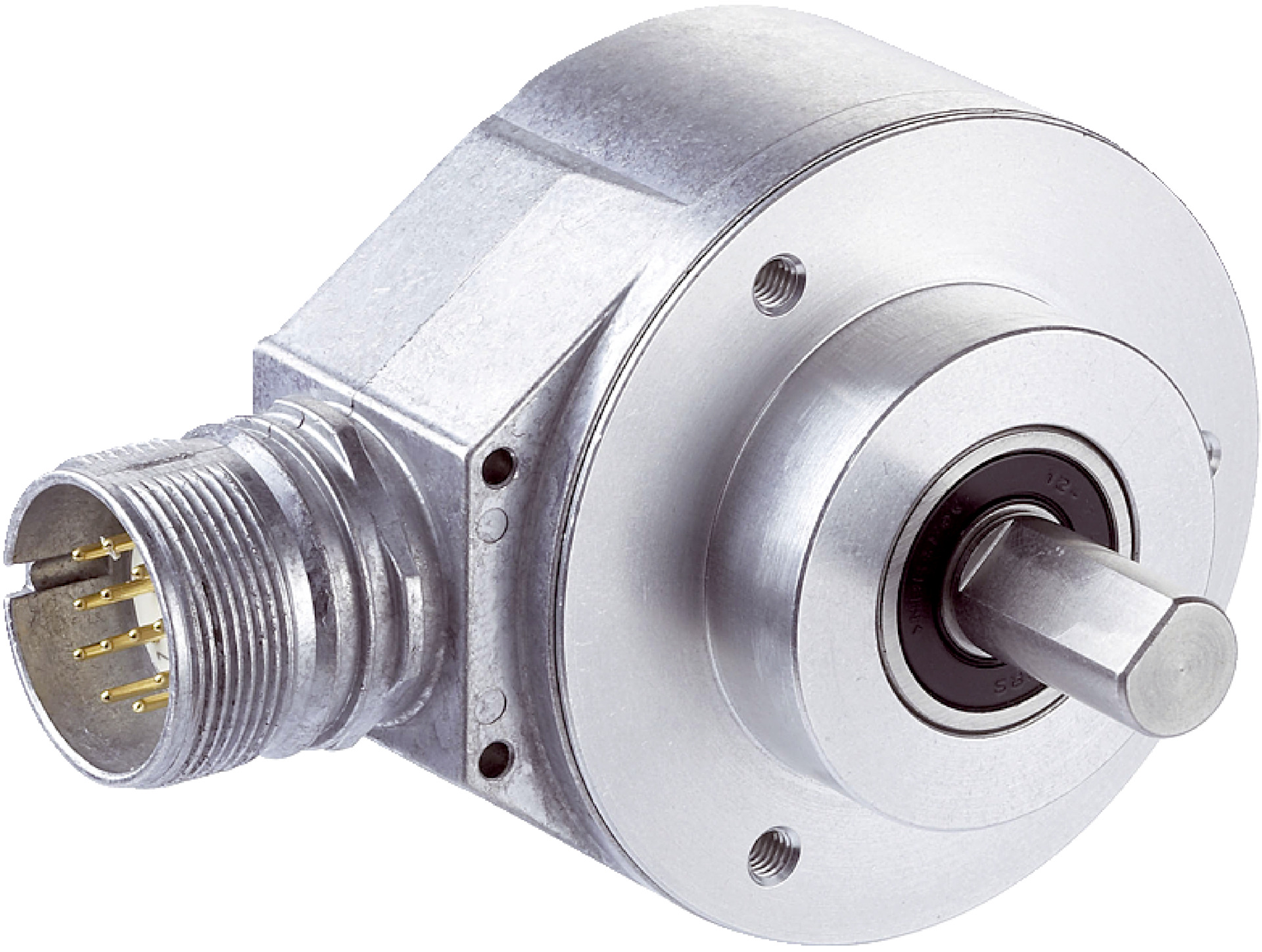

Rotary Encoder AFM60B-S4AA001024 | 1,024 Steps/Rev | IP65/IP67 Rated | by SICK
The Rotary Encoder AFM60B-S4AA001024 delivers high precision with 1,024 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. Its robust design features a stainless steel shaft and face mount flange, ensuring durability and reliability in demanding environments. With an IP65/IP67 rating for dust and water protection, this encoder is perfect for safety-related systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 1,024 steps per revolution (10 bit), 4,096 revolutions (12 bit)
- Max resolution: 10 bit x 12 bit (1,024 x 4,096)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- High operating speed up to 9,000 min⁻¹
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Low start-up and operating torque for efficient operation
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high resolution and repeatability
- Machine tools and manufacturing equipment
- Safety-related systems in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-S4AA001024 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision.
