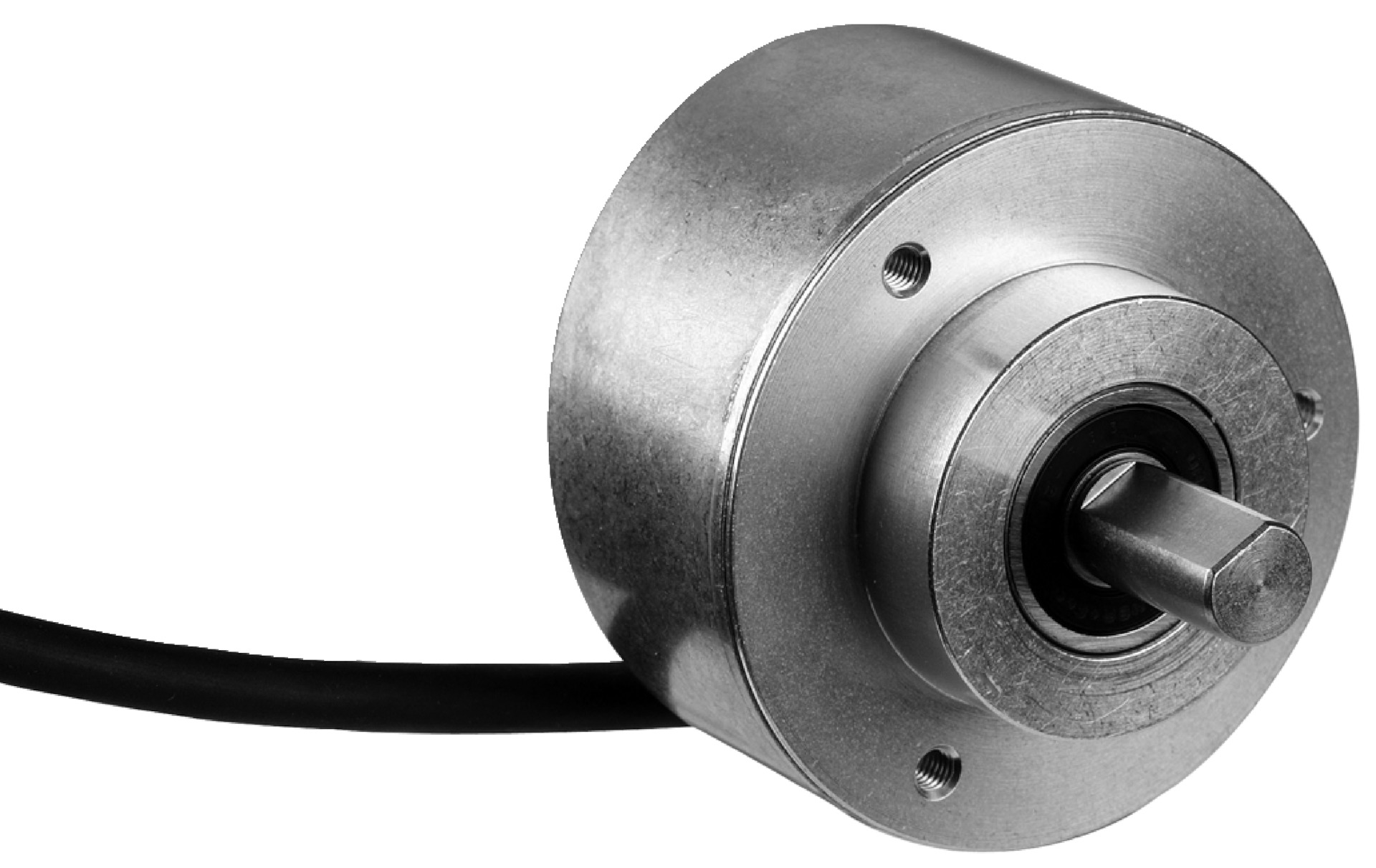

Rotary Encoder AFM60B-S4AK032768 | 32,768 Steps/Rev | IP65/IP67 Protection | by SICK
The Rotary Encoder AFM60B-S4AK032768 offers high precision with 32,768 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and robotics. Built with a solid 10 mm shaft and robust aluminum housing, it ensures reliable performance in harsh environments, with an operating temperature range of -40 °C to +100 °C. Its low power consumption and high shock resistance make it a dependable choice for precision machinery and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder AFM60B-S4AK032768 | 32,768 Steps/Rev | IP65/IP67 Protection | by SICK
Brand: SICK
SKU: 1037662
Alternatively Known As: Rotary Encoder, Incremental Encoder, SSI Encoder, Position Encoder, Industrial Encoder
Technical Specifications
- Resolution: 32,768 steps per revolution (15 bit) and 4,096 revolutions (12 bit)
- Max resolution: 15 bit x 12 bit (32,768 x 4,096)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection: 8-wire cable, 1.5 m
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.5 Ncm
- Operating torque: < 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65/IP67 protection
- Low start-up torque (<0.5 Ncm) and operating torque (<0.3 Ncm)
- Reverse polarity protection and low power consumption (≤0.7 W)
- High reliability with MTTFD of 250 years according to EN ISO 13849-1
- Communication via SSI interface with Gray code and adjustable parameters
- Wide operating temperature range from -40 °C to +100 °C
- High resistance to shock (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60B-S4AK032768 rotary encoder is available for immediate purchase, ideal for industrial automation and precision control applications.
