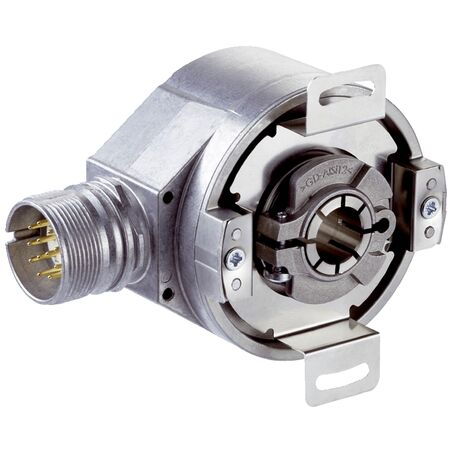

Rotary Encoder AFM60B-TGAA008192 | 13 Bit Resolution | IP65/IP67 Rated | by SICK
The Rotary Encoder AFM60B-TGAA008192 offers high resolution with 8,192 steps per revolution and 4,096 revolutions, making it ideal for industrial automation and precision control applications. Built with a robust stainless steel shaft and aluminum housing, it ensures durability in harsh environments while providing exceptional repeatability with a standard deviation of just 0.002°. With fast initialization and low power consumption, this encoder is perfect for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder AFM60B-TGAA008192 | 13 Bit Resolution | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1052433
Alternatively Known As: Rotary Encoder, High Resolution Encoder, SSI Encoder, Position Sensor
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 250 years (EN ISO 13849-1)
- Max resolution: 13 bit x 12 bit (8,192 steps/rev x 4,096 revolutions)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft with 14 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution and 4,096 revolutions
- Robust mechanical design with stainless steel shaft and aluminum housing
- High repeatability with standard deviation of 0.002°
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low power consumption of ≤ 0.7 W
- Reverse polarity protection included
- Fast initialization time of 50 ms and position forming time under 1 µs
- Supports SSI communication interface with adjustable code sequence
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Manufacturing equipment monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AFM60B-TGAA008192 rotary encoder is available for immediate purchase, ideal for industrial automation and precision control applications.
