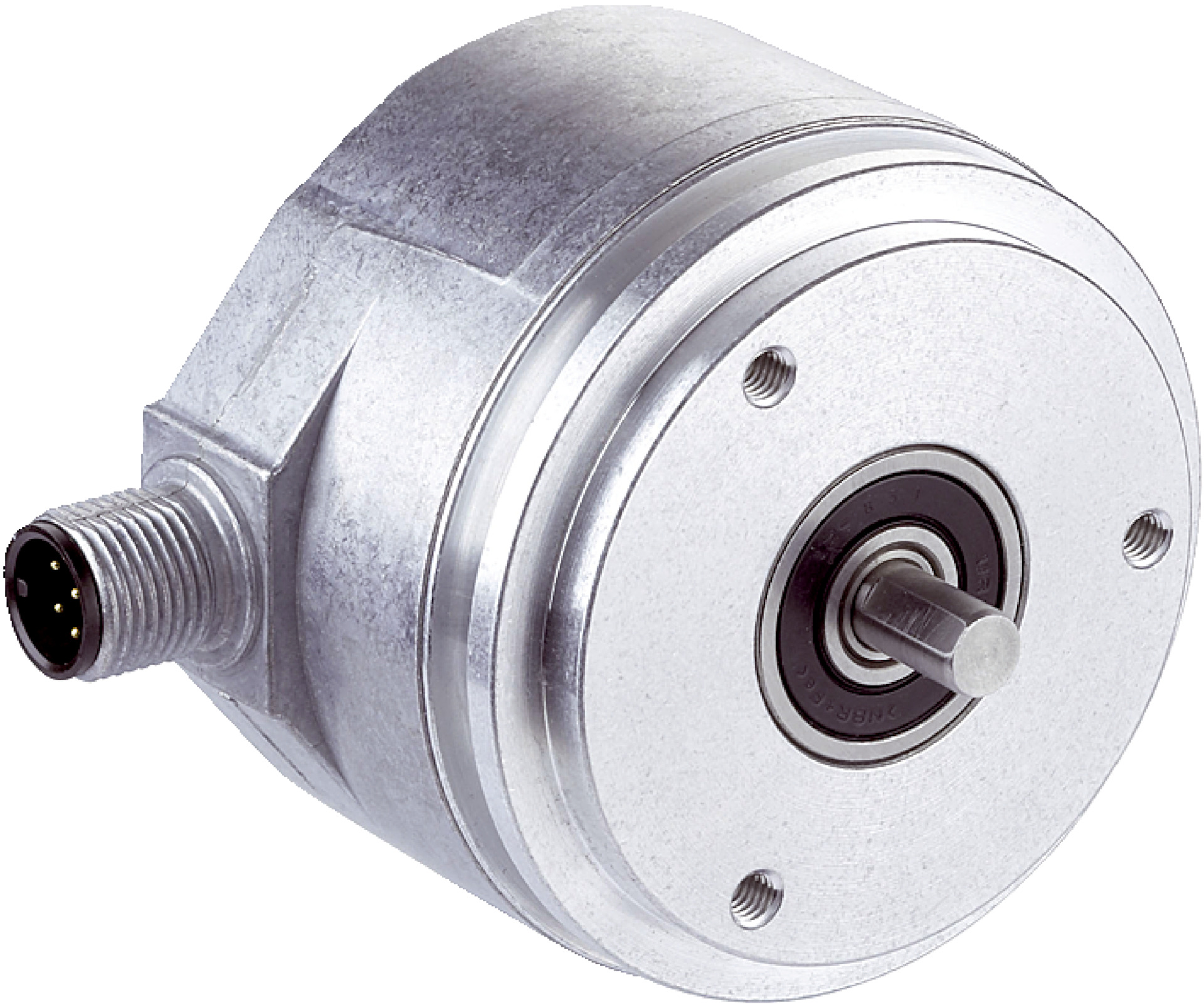

Rotary Encoder AFS60A-S1PC262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The AFS60A-S1PC262144 Rotary Encoder delivers high precision with 262,144 steps per revolution, making it ideal for industrial automation and motion control applications. Built with a robust aluminum housing and stainless steel shaft, it offers IP65/IP67 protection and low power consumption, ensuring reliability in demanding environments. Perfect for robotics and machine tools, this encoder is designed for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder AFS60A-S1PC262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037499
Alternatively Known As: Rotary Encoder, SSI Encoder, Solid Shaft Encoder, High-Resolution Encoder, Industrial Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Set (electronic adjustment): H-active (L = 0 - 3 V, H = 4.0 - U s V)
- CW/CCW counting sequence adjustable
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Solid shaft with stainless steel material and flat characteristic
- Robust aluminum die cast housing and flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Low power consumption ≤ 0.7 W without load
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Low start-up torque < 0.5 Ncm and operating torque < 0.3 Ncm
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter CW/CCW
- Wide operating temperature range from –40 °C to +100 °C
- High resistance to shocks (60 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial encoder systems to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision positioning and motion control
- Machine tool and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-S1PC262144 encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
