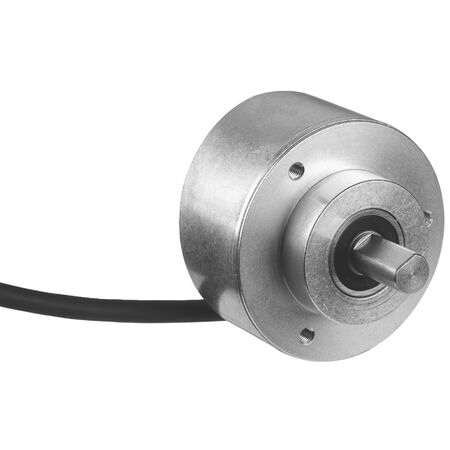

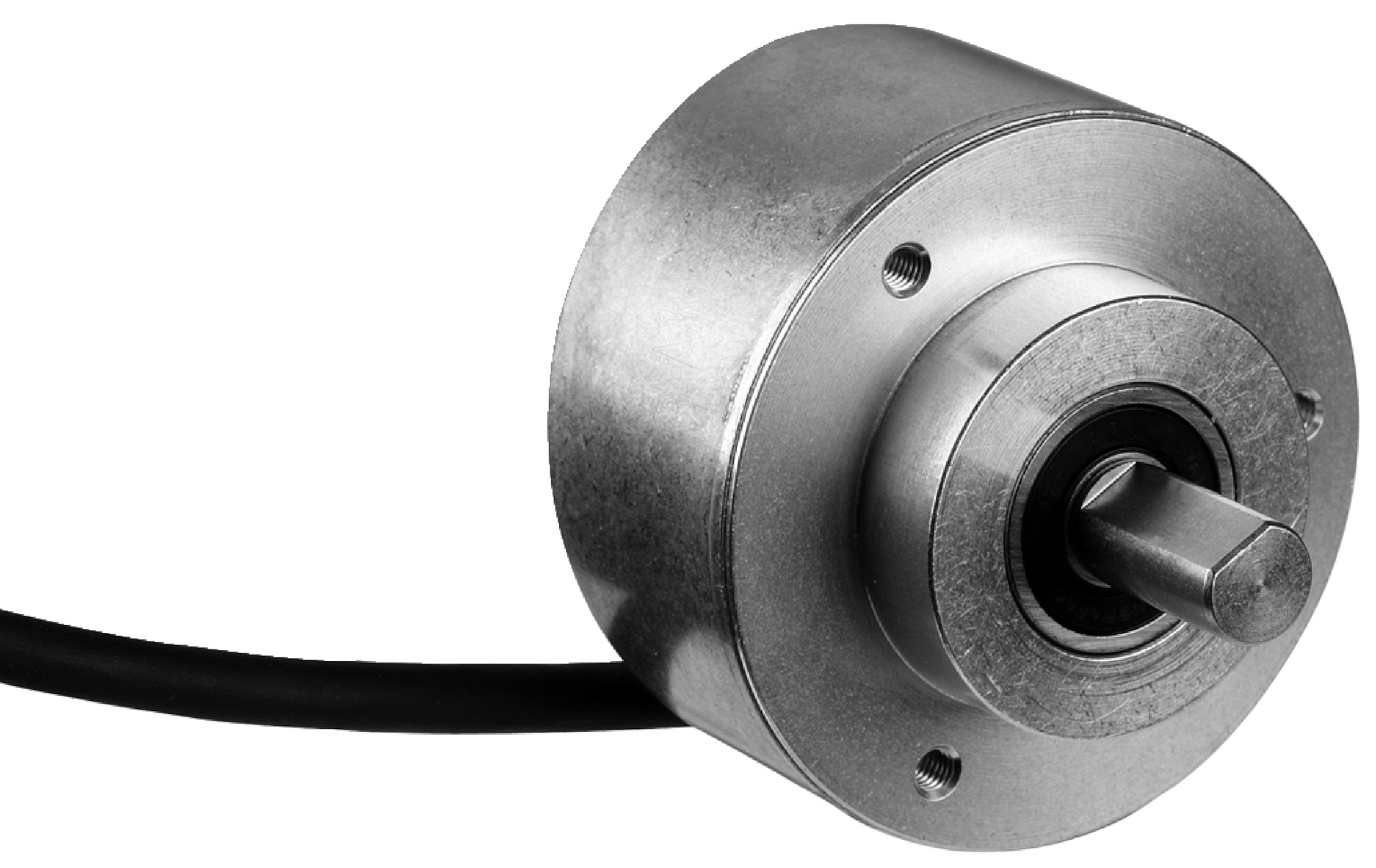

Rotary Encoder AFS60B-S4AK001080 | 1080 Steps/Rev | IP65/IP67 Rated | by SICK
The AFS60B-S4AK001080 rotary encoder delivers high precision with 1,080 steps per revolution, making it ideal for industrial automation and robotics. Its robust design features a stainless steel shaft and low operating torque, ensuring reliable performance in demanding environments. With an IP65/IP67 rating for dust and water protection, this encoder is built to withstand harsh conditions while providing accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Steps per revolution: 1,080
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,080 steps per revolution
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- High operating speed up to 9,000 min⁻¹
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Reverse polarity protection included
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from –40 °C to +100 °C
- High resistance to shocks (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Manufacturing equipment monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFS60B-S4AK001080 rotary encoder is available for immediate purchase, ideal for industrial automation and precision control applications.
