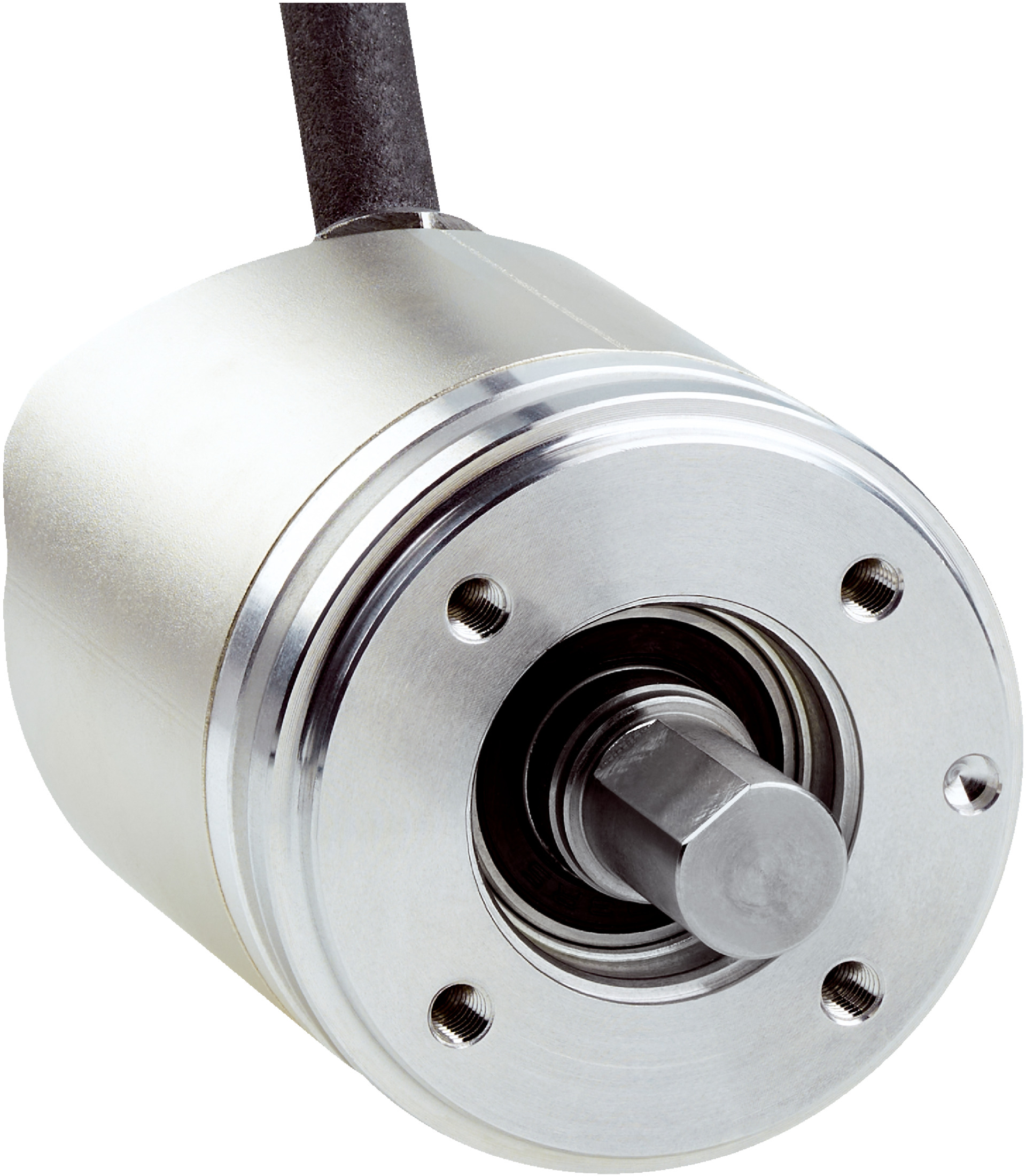

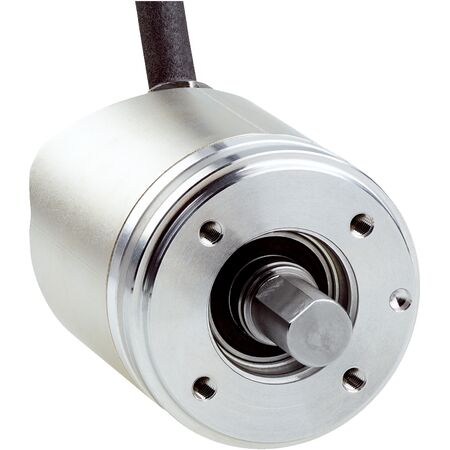

Rotary Encoder AHM36A-S1QJ014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP66/IP67 Rated | by SICK
The Rotary Encoder AHM36A-S1QJ014x12 offers high precision with 16,384 steps per revolution and a robust IO-Link V1.1 communication interface. Designed for industrial automation, this encoder excels in applications requiring precise position and speed measurement, making it ideal for robotics and machine tool positioning. With an IP66/IP67 rated enclosure, it withstands harsh environments while ensuring low power consumption and extensive diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Power supply: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 0.5 m
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Weight: 0.12 kg
- Housing material: Zinc; Flange: Aluminum; Shaft: Stainless steel
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP66/IP67
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40°C to +85°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Extensive diagnostics and status information via IO-Link
- High shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Factory automation requiring high resolution and reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-S1QJ014x12 rotary encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
